DCC350500-DMS-2W4W
Driver Mini Slim Phase-Cut Dimmable Pri:240V Sec:2.5-7V 350-500mA CC 2-4W Pre-wired Primary and secondary
- Checking stock...
Configure your DCC350500-DMS-2W4W
Dimmable (phase-cut)

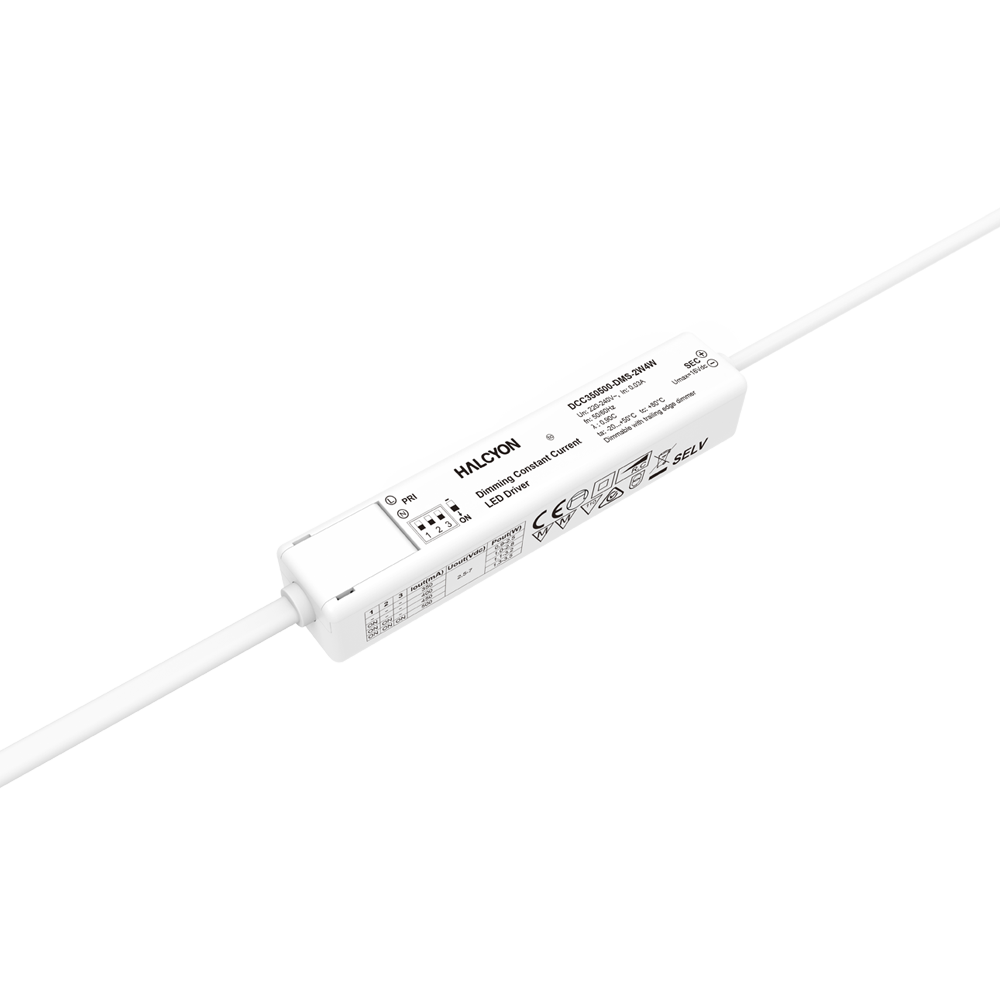

DCC350500-DMS-2W4W 350-500mA 3.5W Constant Current Mini Slim Dimmable Driver
Watts
2W-4W
Watts
2W-4W
Specifications
DCC350500-DMS-2W4W
Watts
2W-4W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP20
Height
18.5mm
Width
20mm
Length
100mm
Classification
Must be installed above insulation
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
2.5V-7V
Driver Output Current
Adjustable 350mA, 400mA, 450mA, 500mA
Power Factor
0.90C
Warranty
5 Year Warranty
