DCV12-60W-IP-V2
A compact, fully sealed power supply for 12V DC exterior and landscape lighting. Rated IP67 and protected against dust and temporary immersion. This driver is suitable for installation inside enclosures within garden beds, under decking or along pathways, wherever moisture is part of the environment. The driver provides a stable 12V DC constant voltage output across a 0 to 60W load range. It suits spike lights, step lights, inground uplights and LED strip. It is non-dimmable, so control it with a standard switch, timer or photocell on the supply side. For outdoor installations, use Halcyon XCON IP68 connectors to ensure waterproof connections.
- Checking stock...
Configure your DCV12-60W-IP-V2

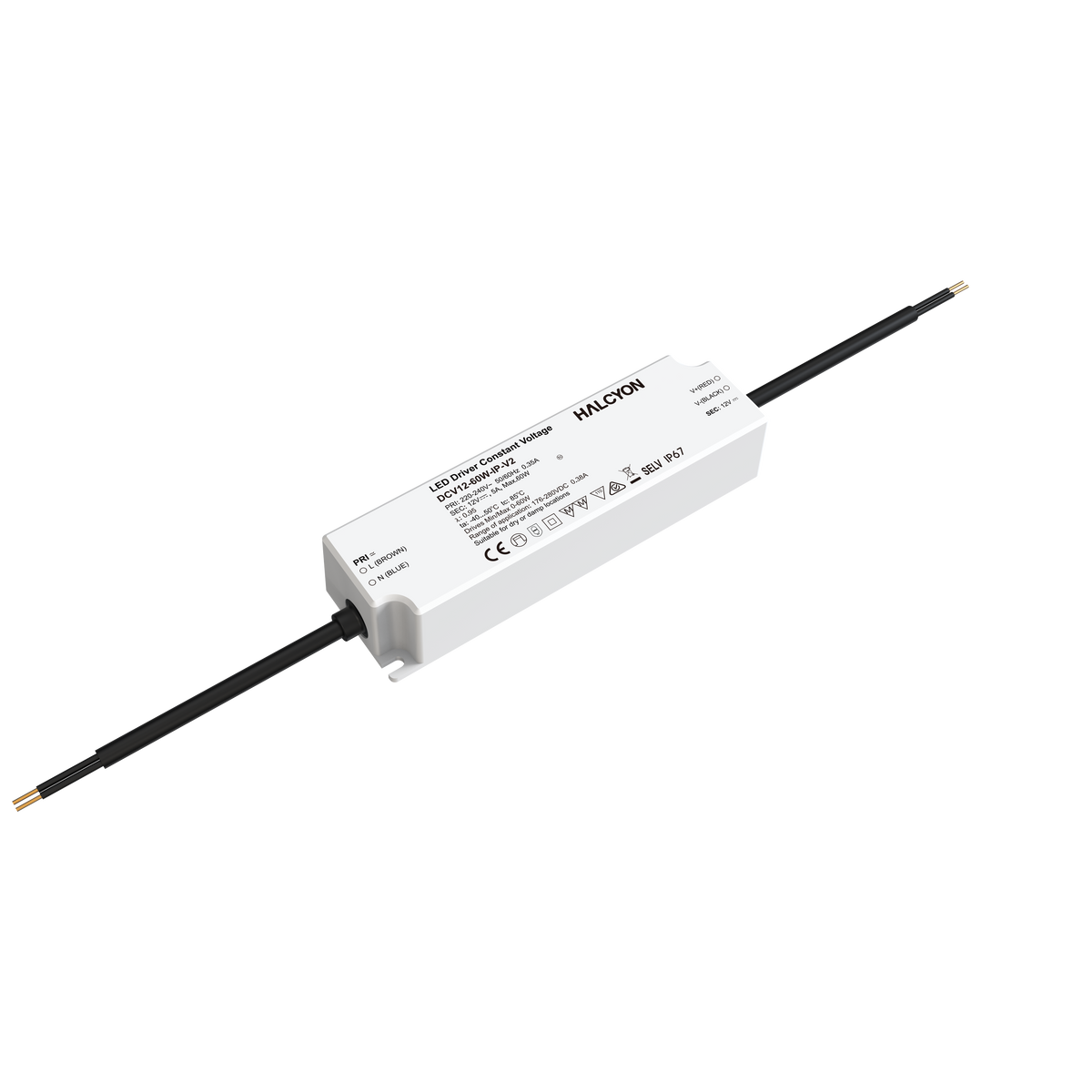

DCV12-60W-IP-V2 IP67 12V 60W Constant Voltage Non-dimmable Driver
Watts
0-60W
Watts
0-60W
Specifications
DCV12-60W-IP-V2
Watts
0-60W
Input
220-240V 50/60Hz
Dimming / Control
Non-Dimmable
Ingress Protection
IP67
Height
35mm
Width
45mm
Length
155mm
Electrical Class
Class I
Driver Output Voltage
12V
Driver Output Current
0-5A
Ambient Operating Temperature
-40..+50°C
Power Factor
0.95
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
