DCV24-40W
Driver Non-Dimmable Pri:240V Sec:24V DC CV 0-40W
- Checking stock...
Configure your DCV24-40W
Non dimmable

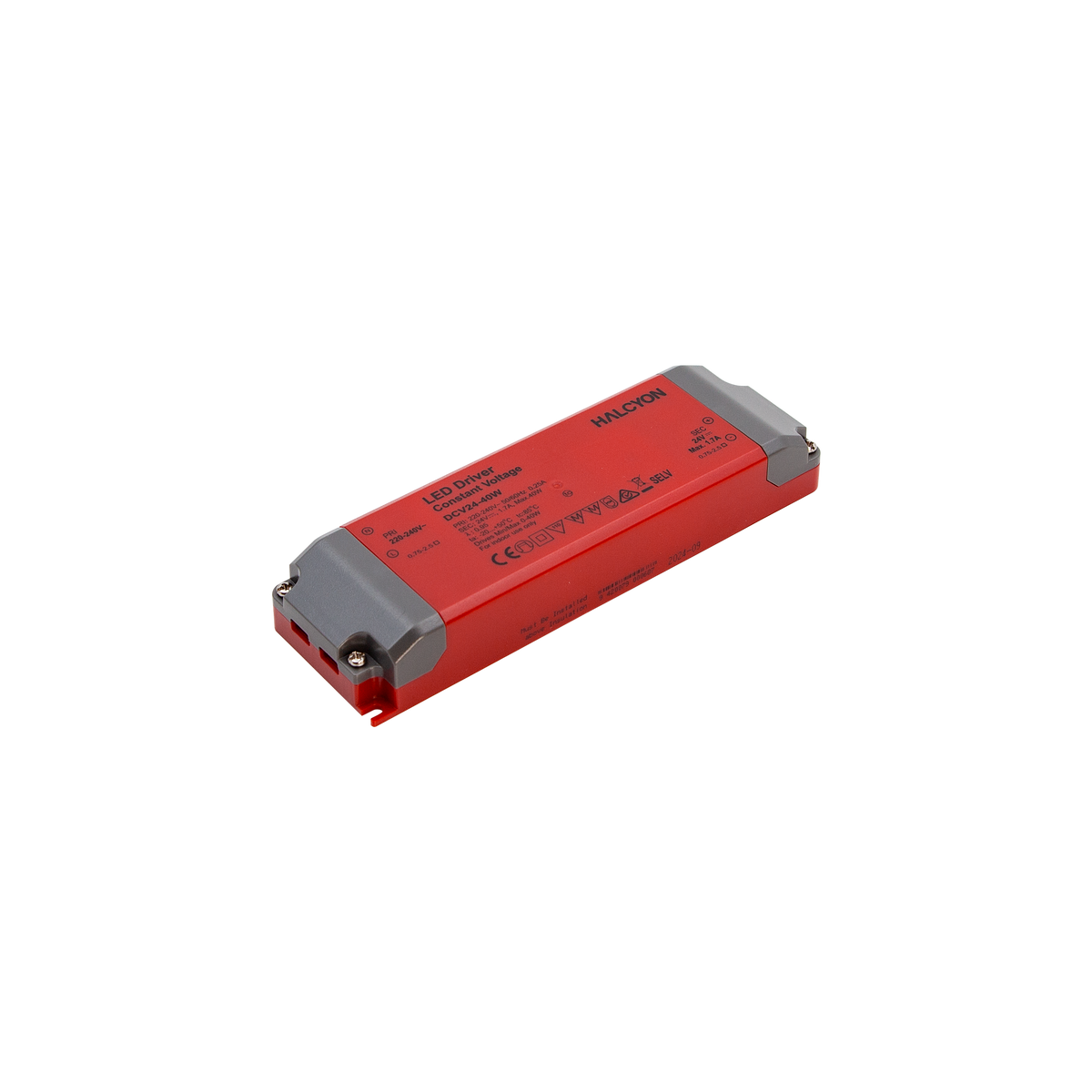

DCV24-40W 24V 40W Constant Voltage Non-dimmable Driver
Watts
0W-40W
Watts
0W-40W
Specifications
DCV24-40W
Watts
0W-40W
Input
220-240V 50/60Hz
Dimming / Control
Non-Dimmable
Ingress Protection
IP20
Height
24mm
Width
52mm
Length
166mm
Classification
Must be installed above insulation
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
24V
Driver Output Current
0-1.7A
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
