DCV12-75W
Driver Non-Dimmable Pri:240V Sec:12V DC CV 0-75W
- Checking stock...
Configure your DCV12-75W
Non dimmable

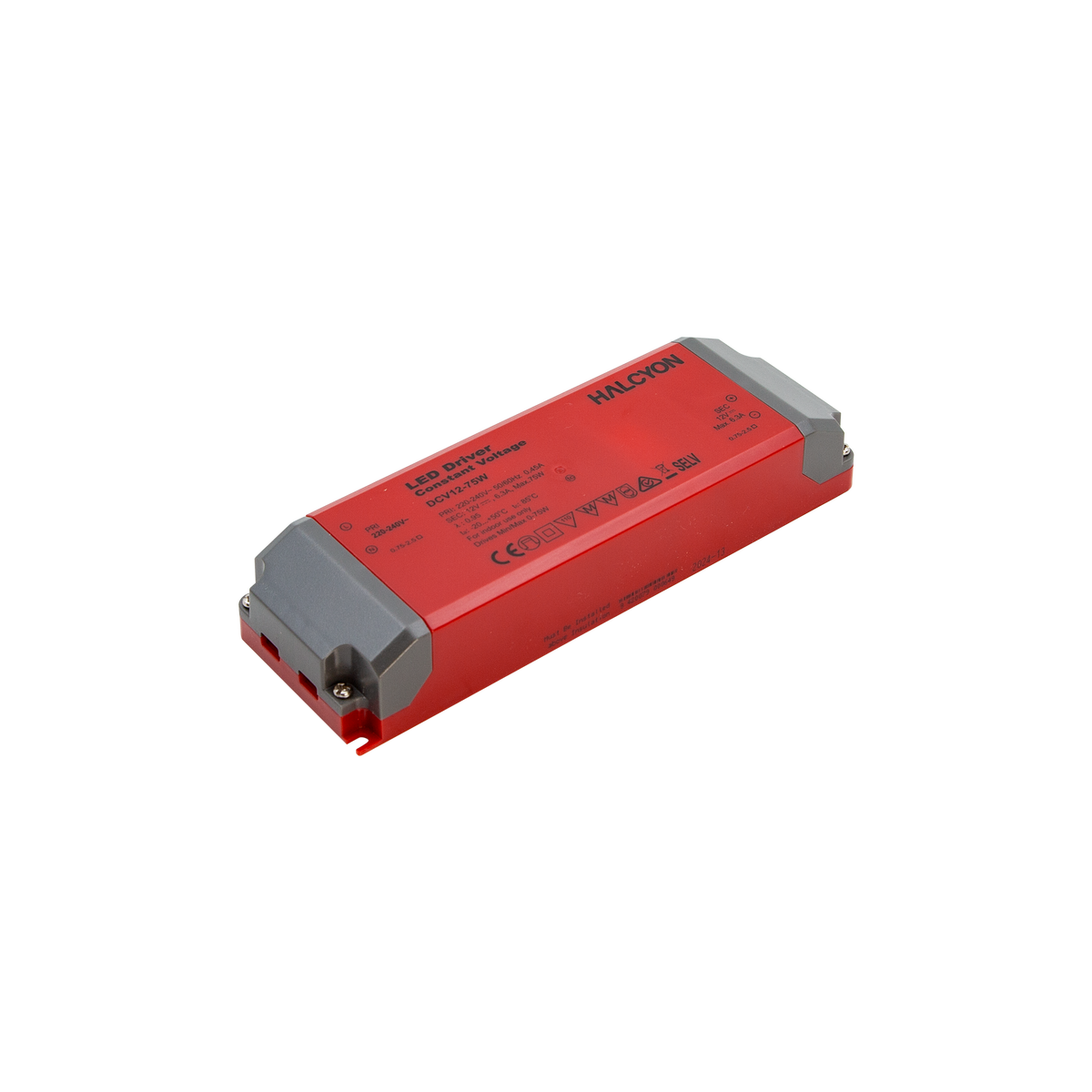

DCV12-75W 12V 75W Constant Voltage Non-dimmable Driver
Watts
0W-75W
Watts
0W-75W
Specifications
DCV12-75W
Watts
0W-75W
Input
220-240V 50/60Hz
Dimming / Control
Non-Dimmable
Ingress Protection
IP20
Height
32mm
Width
61mm
Length
184mm
Classification
Must be installed above insulation
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
12V
Driver Output Current
0-6.3A
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
