DCC700-DX-30W
- Checking stock...
Configure your DCC700-DX-30W

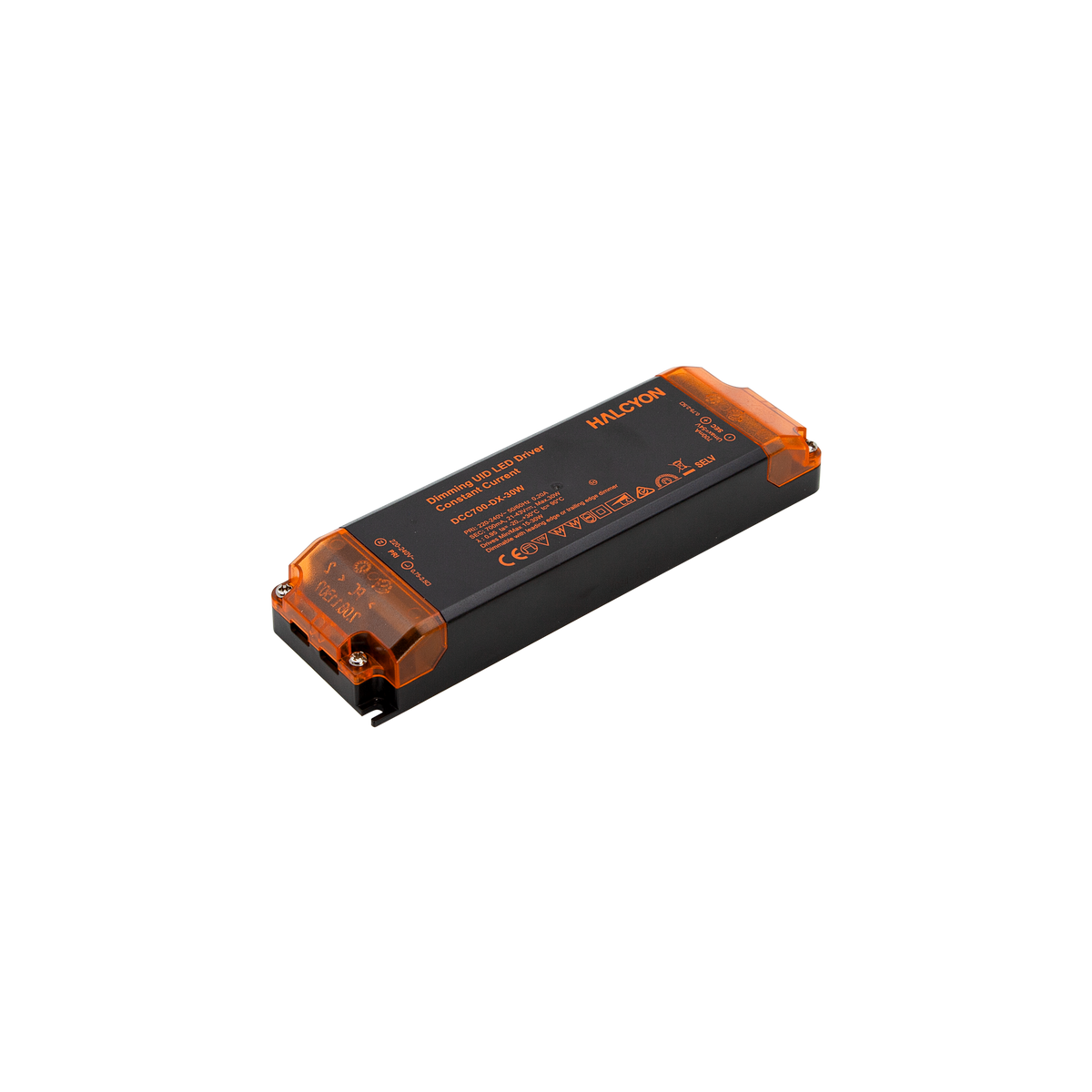

DCC700-DX-30W 700mA 30W Dimmable Constant Current DX Series Driver
Watts
15W-30W
Watts
15W-30W
-
Go-Link Mousetrap Loop-in Loop-out
Specifications
DCC700-DX-30W
Watts
15W-30W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
24mm
Width
52mm
Length
166mm
TLAs
Flicker-free (PstLM <1.0 / SVM <0.4)
Classification
Suitable for Installation Under Insulation
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
21-43V
Driver Output Current
700mA
Ambient Operating Temperature
-20..+25°C
Power Factor
0.95
Installation Note
Suitable for Installation Under Insulation
Warranty
5 Year Warranty
