DCC350-40W
Driver Non-Dimmable Pri:240V Sec:57-105V DC 350mA CC 20-40W
- Checking stock...
Configure your DCC350-40W
Non dimmable

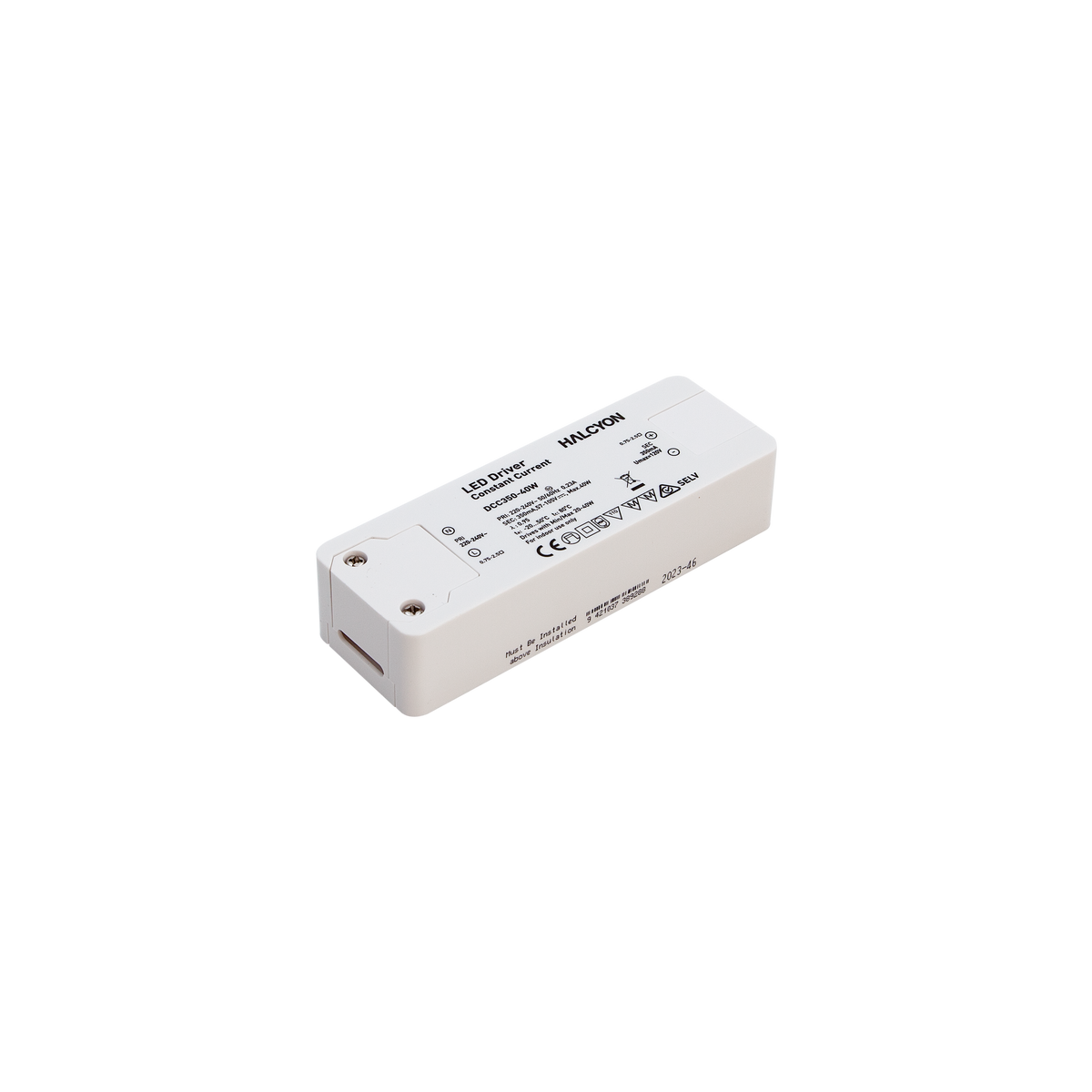

DCC350-40W 350mA 40W Constant Current Non-dimmable Driver
Watts
20W-40W
Watts
20W-40W
Specifications
DCC350-40W
Watts
20W-40W
Input
220-240V 50/60Hz
Dimming / Control
Non-Dimmable
Ingress Protection
IP20
Height
28mm
Width
43mm
Length
127mm
Classification
Must be installed above insulation
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
57-105V
Driver Output Current
350mA
Ambient Operating Temperature
-20..+50°C
Power Factor
0.95
Warranty
5 Year Warranty
