DCC260-DX-9W
Driver DX Series Phase-Cut Dimmable UID Pri:240V Sec:17-35V DC 260mA CC 4.5-9W
- Checking stock...
Configure your DCC260-DX-9W
Dimmable (phase-cut)

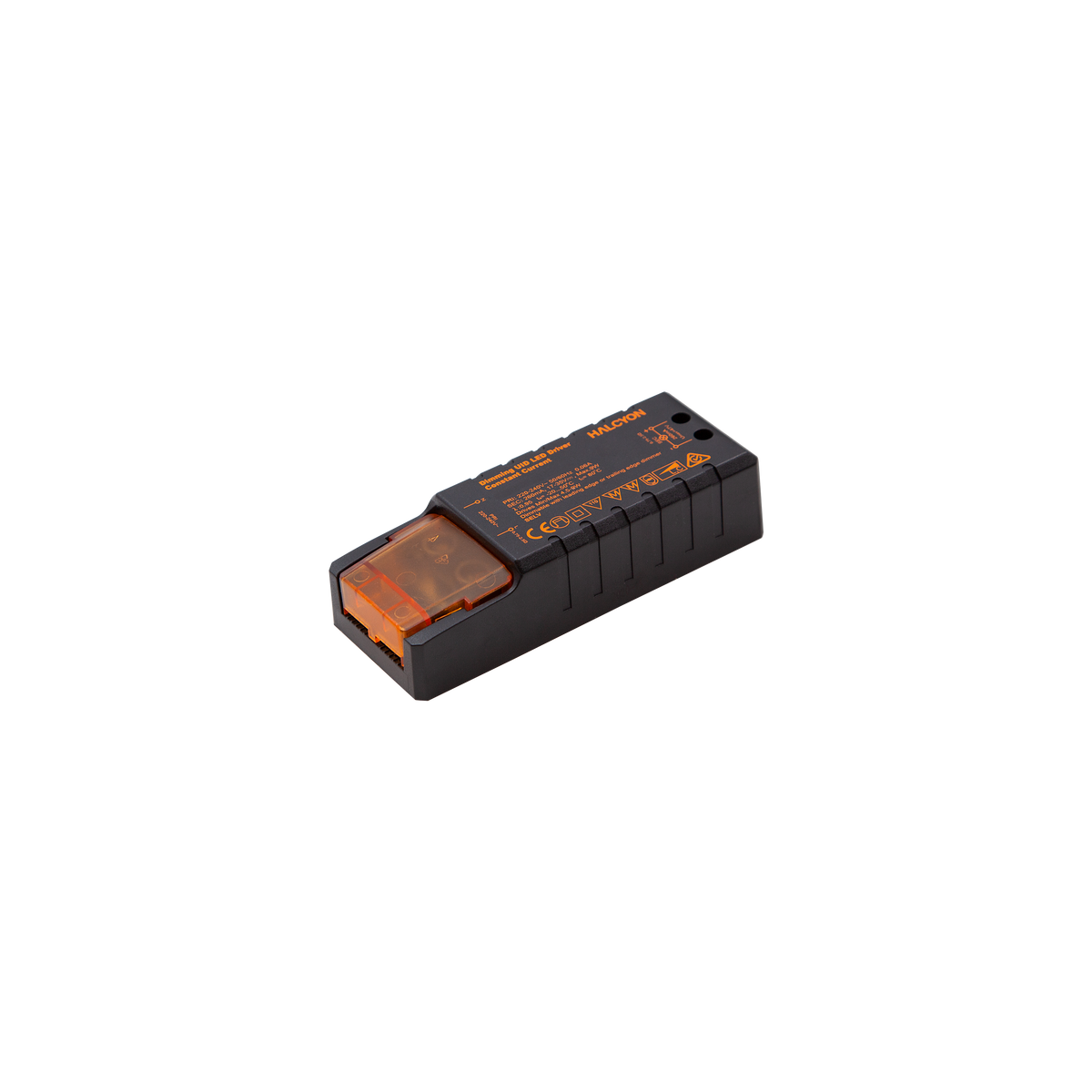

DCC260-DX-9W 260mA 9W Dimmable Constant Current DX Series Driver
Watts
4.5W-9W
Watts
4.5W-9W
-
Go-Link Mousetrap Loop-in Loop-out
Specifications
DCC260-DX-9W
Watts
4.5W-9W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
Classification
Suitable for Installation Under Insulation
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
17-35V
Driver Output Current
260mA
Warranty
5 Year Warranty
