DCC900A-D-47W-PNL
Constant Current Adjustable Phase-cut Dimmable Driver Preset to 900mA <47W. Complete with Quick Connect Panel Secondary Cable, 1.5m Lead and 2 Pin Plug. Secondary DC plug fits all standard Halcyon panels. Simply remove quick connect secondary plug for custom applications.
- Custom Build - Request Availability
Configure your DCC900A-D-47W-PNL
Dimmable (phase-cut)

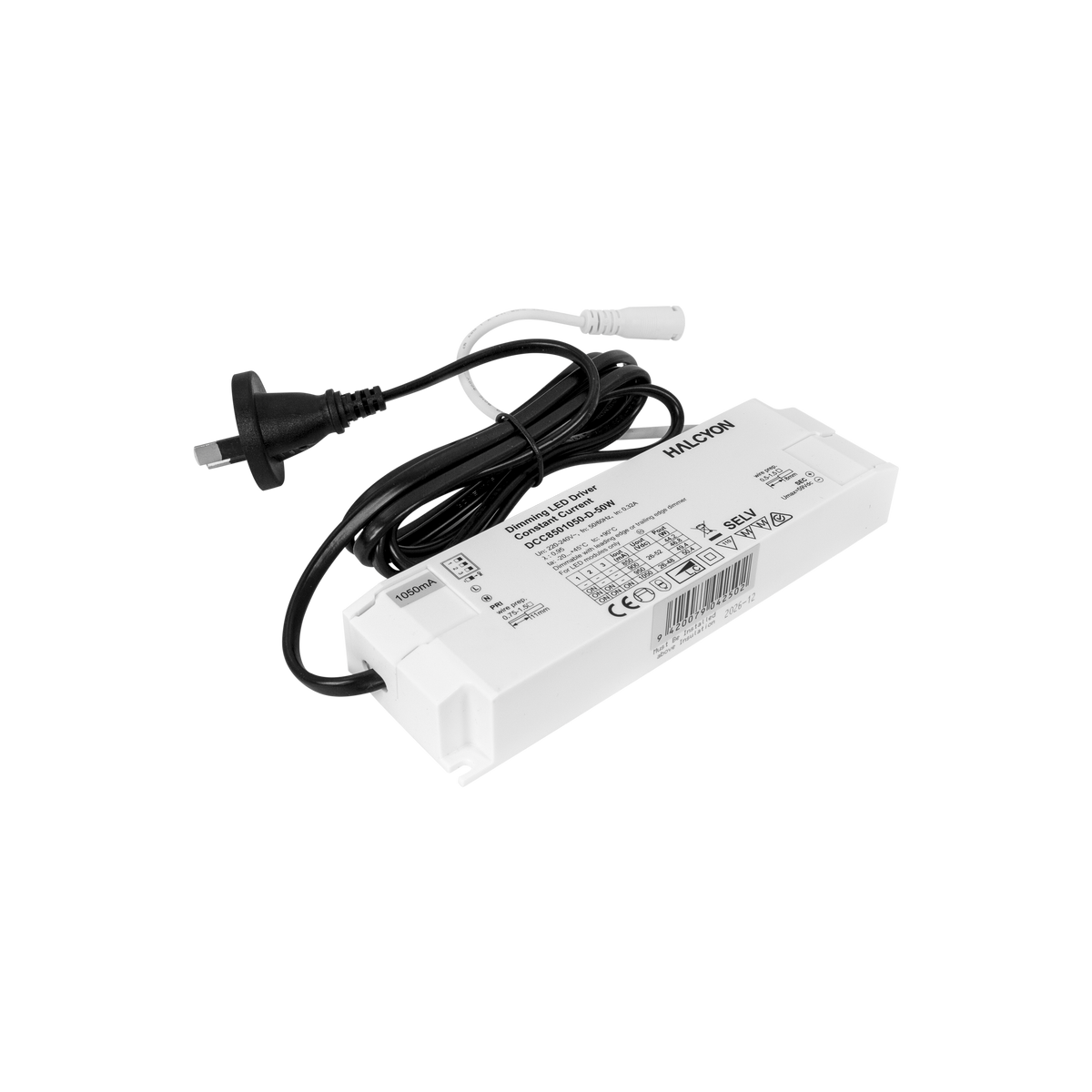

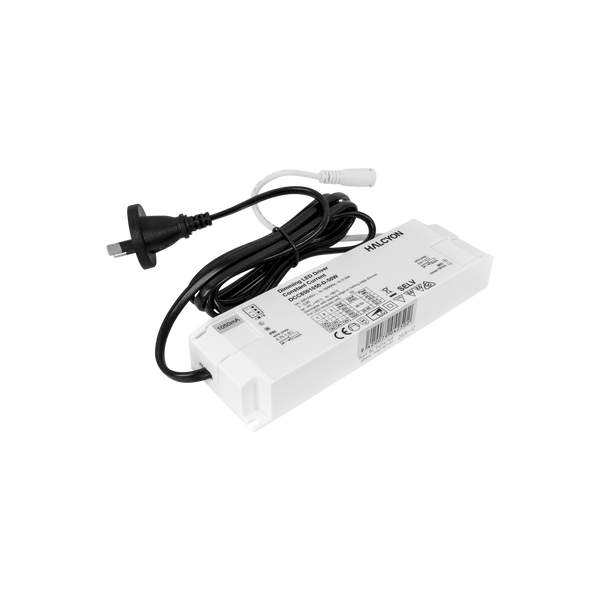

DCC900A-D-47W-PNL 900mA 47W Constant Current Dimmable Driver
Watts
23.4-46.8W
Watts
23.4-46.8W
Specifications
DCC900A-D-47W-PNL
Watts
23.4-46.8W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP20
Height
25mm
Width
52mm
Length
166mm
TLAs
Flicker-free (PstLM <1.0 / SVM <0.4)
Classification
Must be installed above insulation
Material
Self-extinguishing Plastic Housing
Electrical Class
Class II
Driver Output Voltage
26-52V
Driver Output Current
Preset to 900mA. Adjustable 850mA, 900mA, 950mA, 1050mA
Power Factor
0.95
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
