DCC800A-CAS-40W-PNL

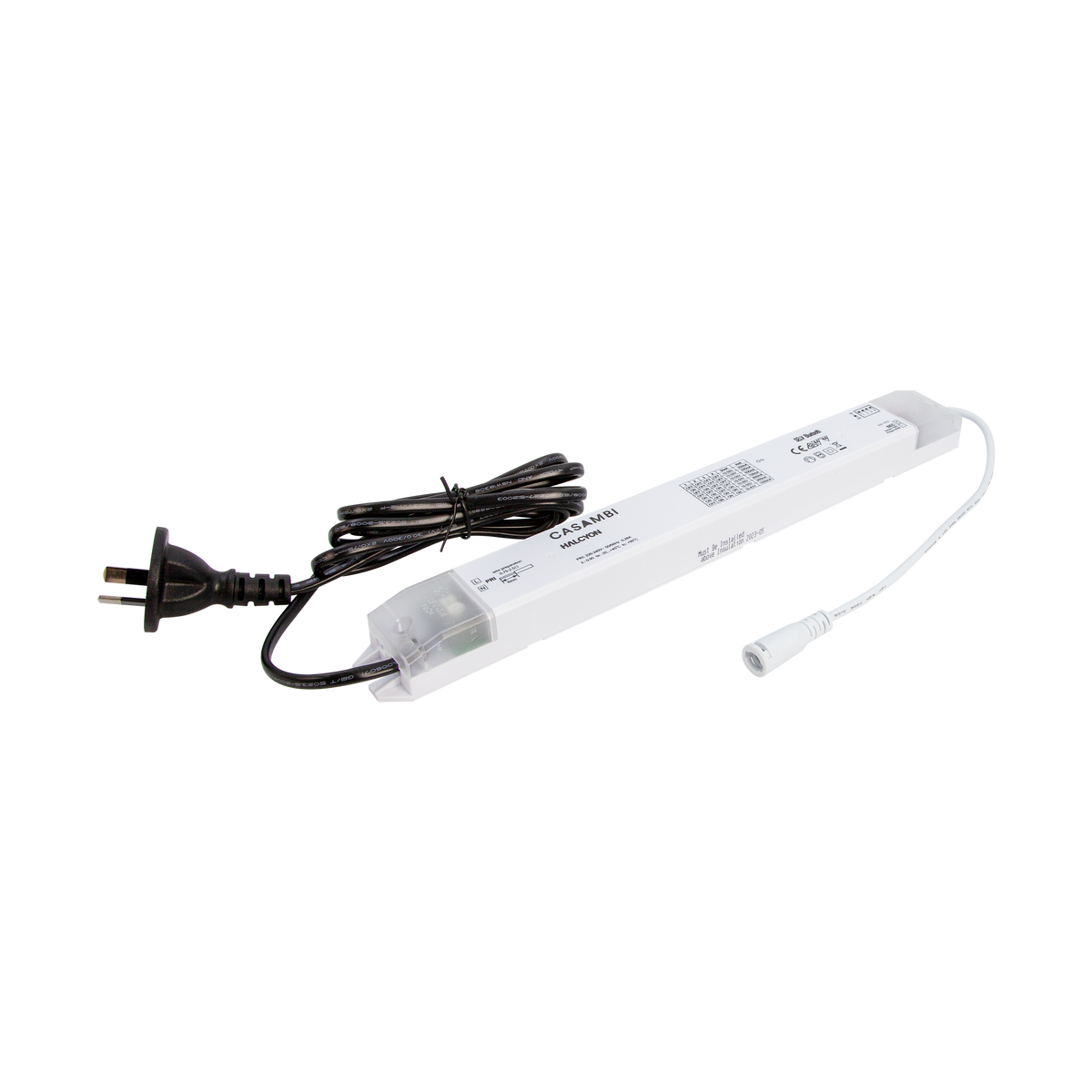

Constant Current Adjustable Casambi Driver Preset to 800mA <40W. Complete with Quick Connect Panel Secondary Cable, 1.5m Lead and 2 Pin Plug. Secondary DC plug fits all standard Halcyon panels. Simply remove quick connect secondary plug for custom applications.
- Custom Build - Request Availability
Configure your DCC800A-CAS-40W-PNL
Casambi
DCC800A-CAS-40W-PNL 800mA 40W Constant Current Casambi Driver
Watts
8-40W
Watts
8-40W
Specifications
DCC800A-CAS-40W-PNL
Watts
8-40W
Input
220-240V 50/60Hz
Dimming / Control
Casambi
Ingress Protection
IP20
Height
24mm
Width
35mm
Length
320mm
Classification
Must be installed above insulation
Electrical Class
Class II
Driver Output Voltage
10-50V
Driver Output Current
Preset to 800mA. Adjustable 350mA, 500mA, 600mA, 700mA, 800mA, 900mA, 1050mA
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
