700mA 29W Constant Current Dali Driver
700mA 29W Constant Current Dali Driver
Jump to Resources
700mA 29W Constant Current Dali Driver 700mA 29W Constant Current Dali Driver

DCC700A-DD-29W-GL-PNL

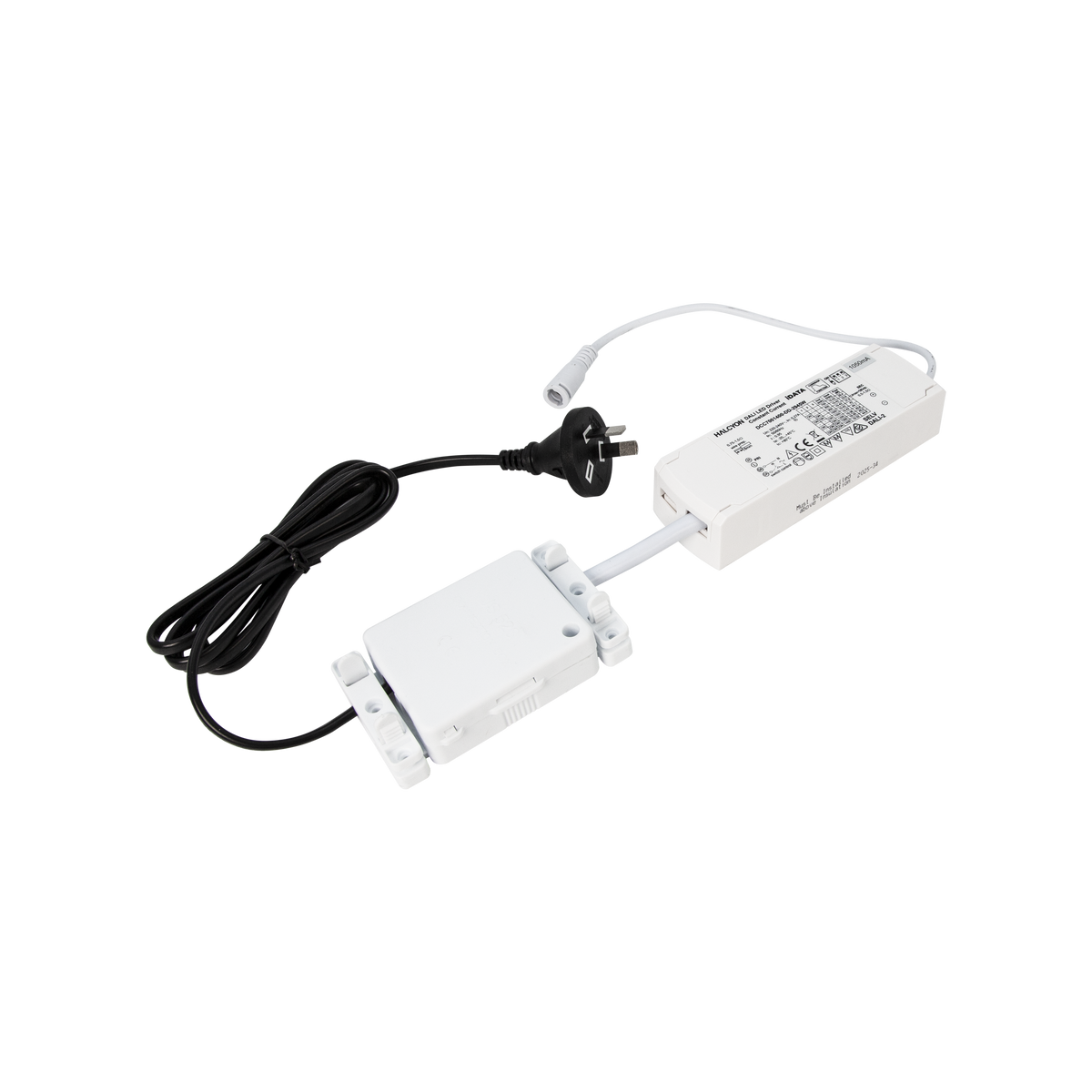

Constant Current Adjustable DALI2 Driver Preset to 700mA <29W. Complete with Quick Connect Panel Secondary Cable, Pre-wired Go-link 5 Dali pin speed connector, 1.5m Lead, 2 Pin Plug. Secondary DC plug fits all standard Halcyon panels. Simply remove quick connect secondary plug for custom applications.
  • Custom Build - Request Availability

Configure your DCC700A-DD-29W-GL-PNL

Dali
700mA 29W Constant Current Dali Driver

DCC700A-DD-29W-GL-PNL 700mA 29W Constant Current Dali Driver

Watts

7-29.4W

Watts

7-29.4W

Jump to Resources

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

DCC700A-DD-29W-GL-PNL

Watts

7-29.4W

Input

220-240V 50/60Hz

Dimming / Control

Dali

Ingress Protection

IP20

Height

28mm

Width

44mm

Length

137mm

TLAs

Flicker-free (PstLM <1.0 / SVM >0.4)

Classification

Must be installed above insulation

Material

PC

Electrical Class

Class II

Driver Output Voltage

10-42V

Driver Output Current

Preset to 700mA. Adjustable 700mA, 800mA, 900mA, 1000mA, 1050mA, 1200mA, 1300mA, 1400mA

Ambient Operating Temperature

-20..+45°C

Weight

190g

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
