DCC500A-CAS-25W-PNL
Constant Current Adjustable Casambi Driver Preset to 500mA <25W. Complete with Quick Connect Panel Secondary Cable, 1.5m Lead and 2 Pin Plug. Secondary DC plug fits all standard Halcyon panels. Simply remove quick connect secondary plug for custom applications.
- Custom Build - Request Availability
Configure your DCC500A-CAS-25W-PNL
Casambi

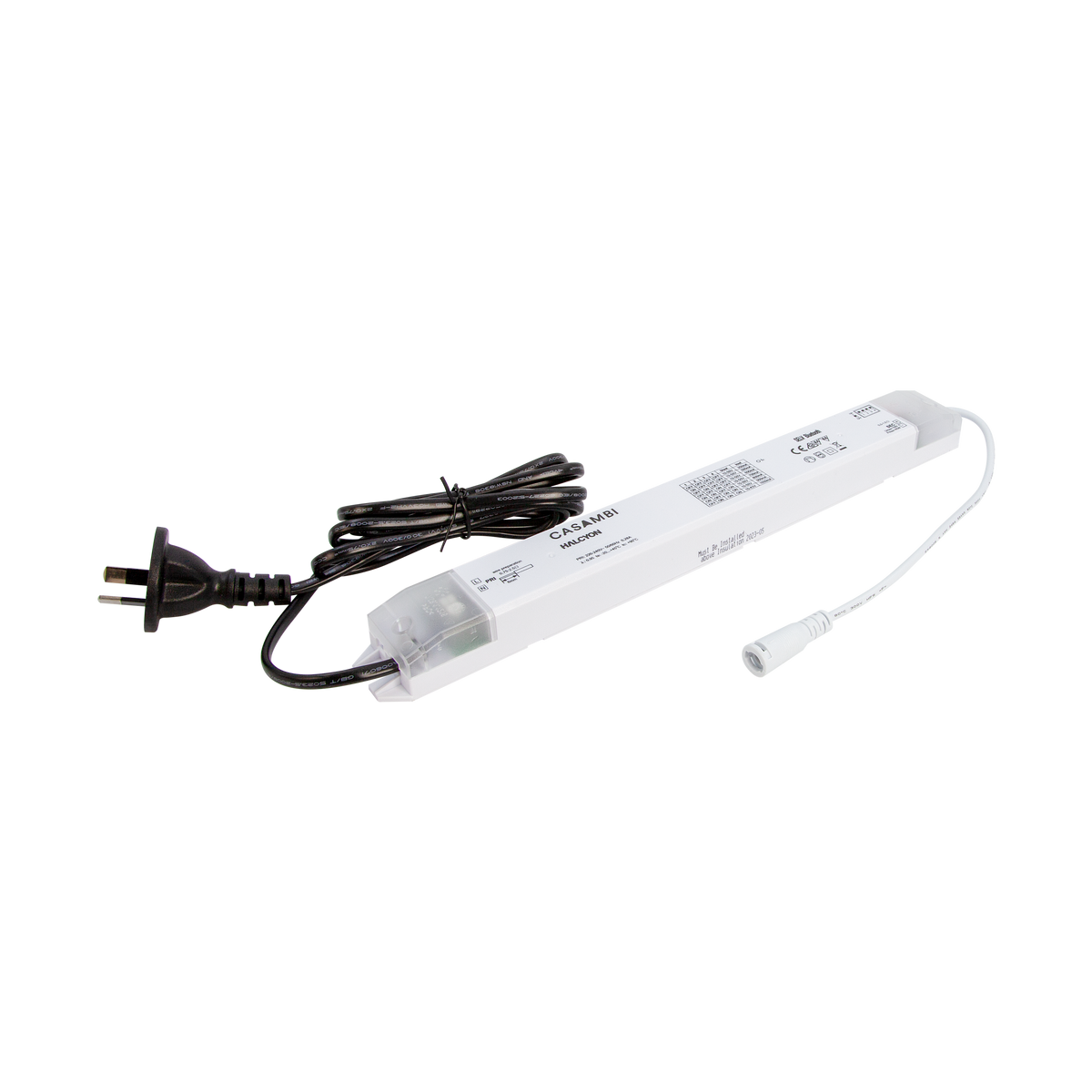

DCC500A-CAS-25W-PNL 500mA 25W Constant Current Casambi Driver
Watts
5-25W
Watts
5-25W
Specifications
DCC500A-CAS-25W-PNL
Watts
5-25W
Input
220-240V 50/60Hz
Dimming / Control
Casambi
Ingress Protection
IP20
Height
24mm
Width
35mm
Length
320mm
Classification
Must be installed above insulation
Electrical Class
Class II
Driver Output Voltage
10-50V
Driver Output Current
Preset to 500mA. Adjustable 350mA, 500mA, 600mA, 700mA, 800mA, 900mA, 1050mA
Warranty
5 Year Warranty
