DCC350A-DX-15W-GL
Constant Current Adjustable Phase-cut Dimmable Driver Preset to 350mA <15W. Pre-wired with Go-link connector.
- Custom Build - Request Availability
Configure your DCC350A-DX-15W-GL
Dimmable (phase-cut)

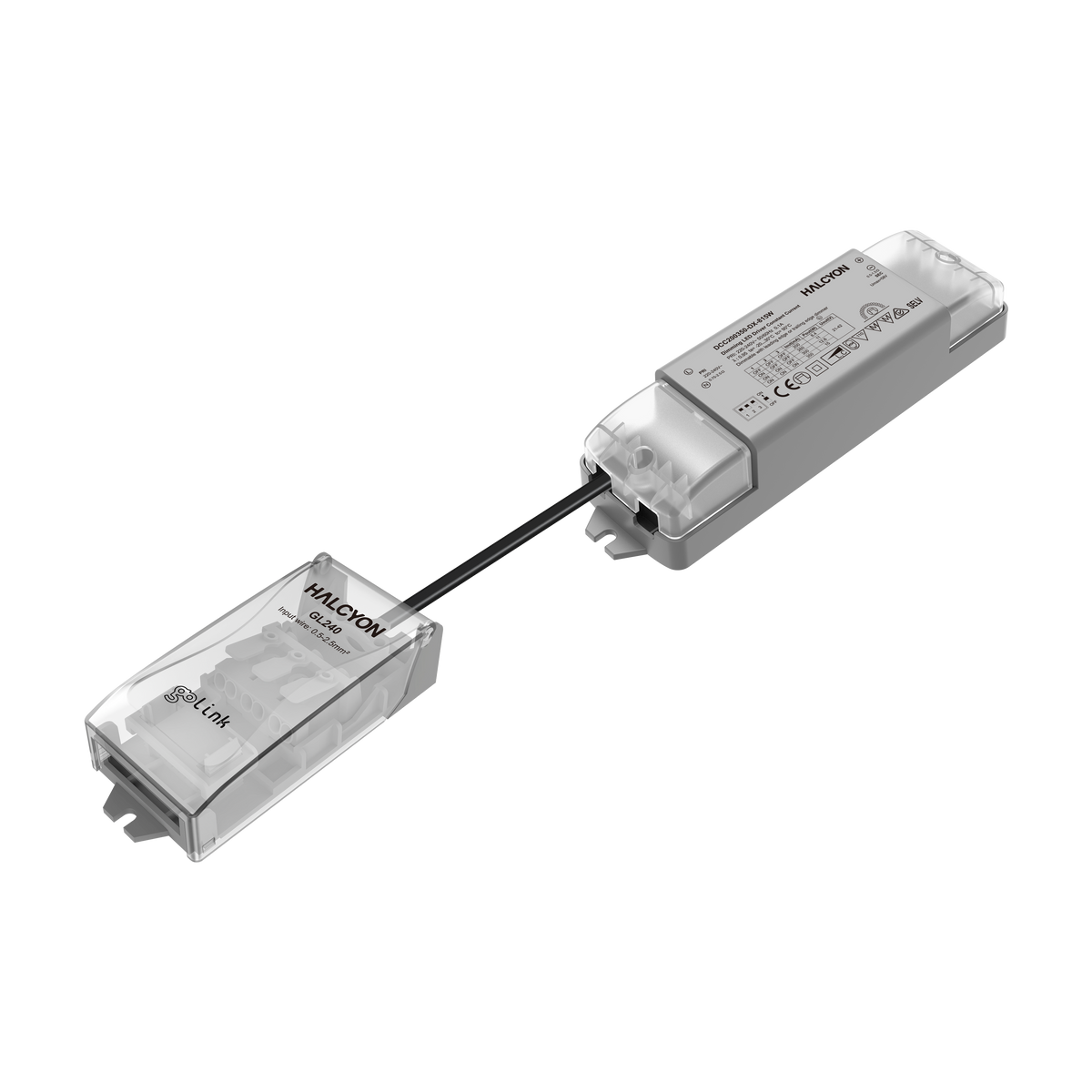

DCC350A-DX-15W-GL 350mA 15W Phase-cut Dimmable Constant Current Driver - Go Link Adaptor
Watts
7.5-15W
Watts
7.5-15W
Specifications
DCC350A-DX-15W-GL
Watts
7.5-15W
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
Ingress Protection
IP20
Height
28mm
Width
44mm
Length
156mm
Classification
Suitable for Installation Under Insulation
Material
PC
Electrical Class
Class II
Driver Output Voltage
21-42V
Driver Output Current
Preset to 350mA. Adjustable 200mA, 260mA, 300mA, 350mA
Ambient Operating Temperature
-20..+25°C
Warranty
5 Year Warranty
