DCC350A-CAS-17W-PNL

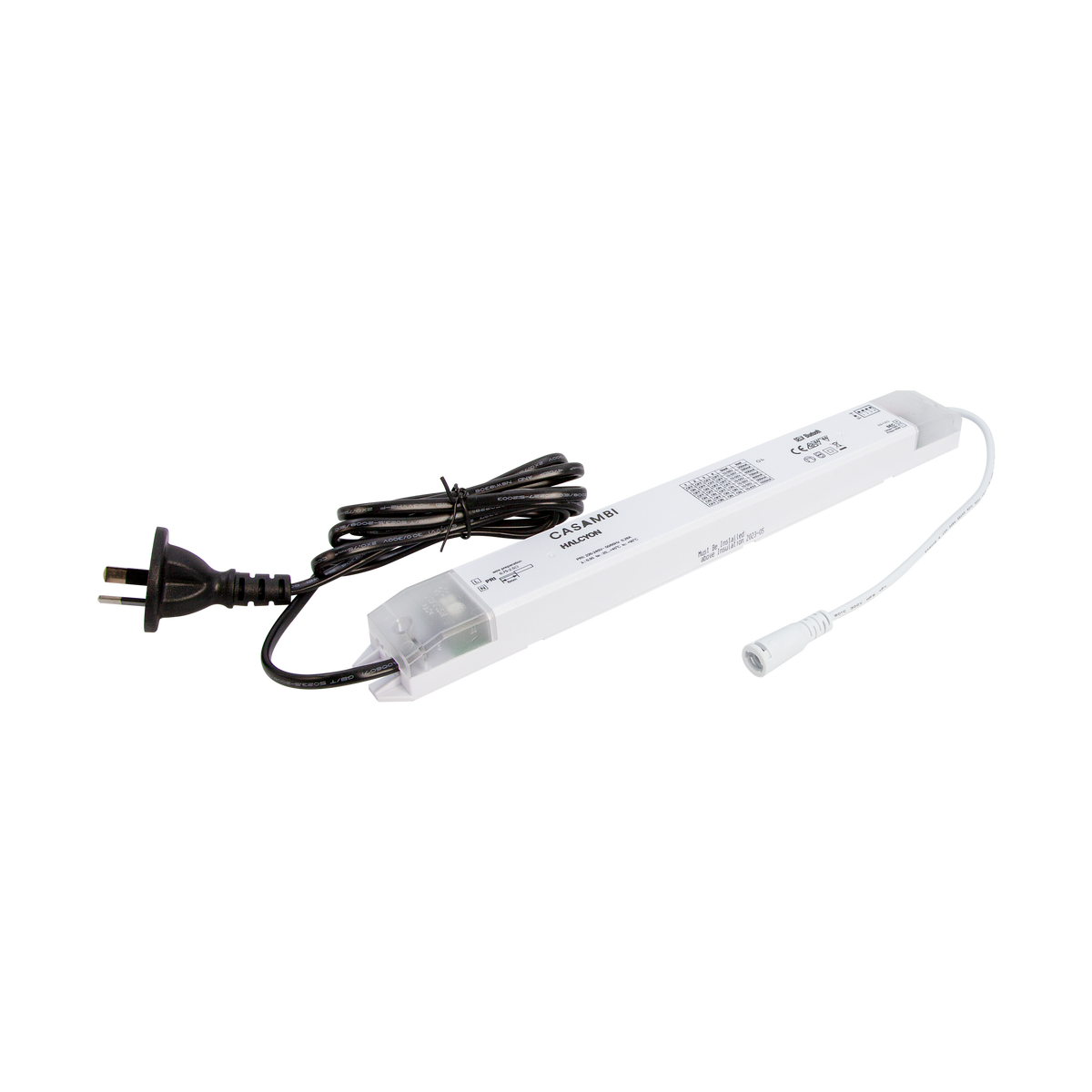

Constant Current Adjustable Casambi Driver Preset to 350mA <17W. Complete with Quick Connect Panel Secondary Cable, 1.5m Lead and 2 Pin Plug. Secondary DC plug fits all standard Halcyon panels. Simply remove quick connect secondary plug for custom applications.
- Custom Build - Request Availability
Configure your DCC350A-CAS-17W-PNL
Casambi
DCC350A-CAS-17W-PNL 350mA 17W Constant Current Casambi Driver
Watts
3.5-17W
Watts
3.5-17W
Specifications
DCC350A-CAS-17W-PNL
Watts
3.5-17W
Input
220-240V 50/60Hz
Dimming / Control
Casambi
Ingress Protection
IP20
Height
24mm
Width
35mm
Length
320mm
Classification
Must be installed above insulation
Electrical Class
Class II
Driver Output Voltage
10-50V
Driver Output Current
Preset to 350mA. Adjustable 350mA, 500mA, 600mA, 700mA, 800mA, 900mA, 1050mA
Warranty
5 Year Warranty
