DCC1400A-DD-45W-GL-PNL

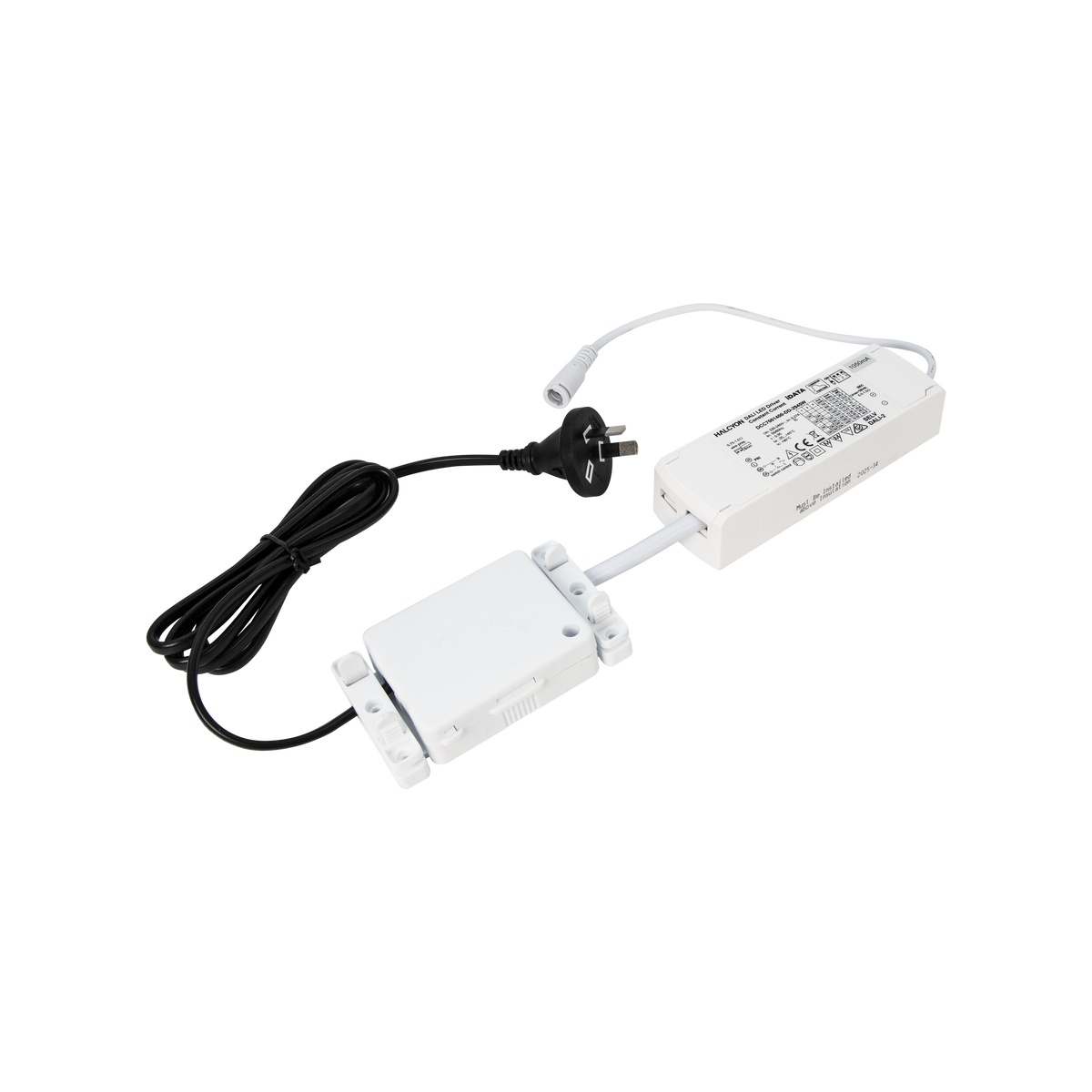

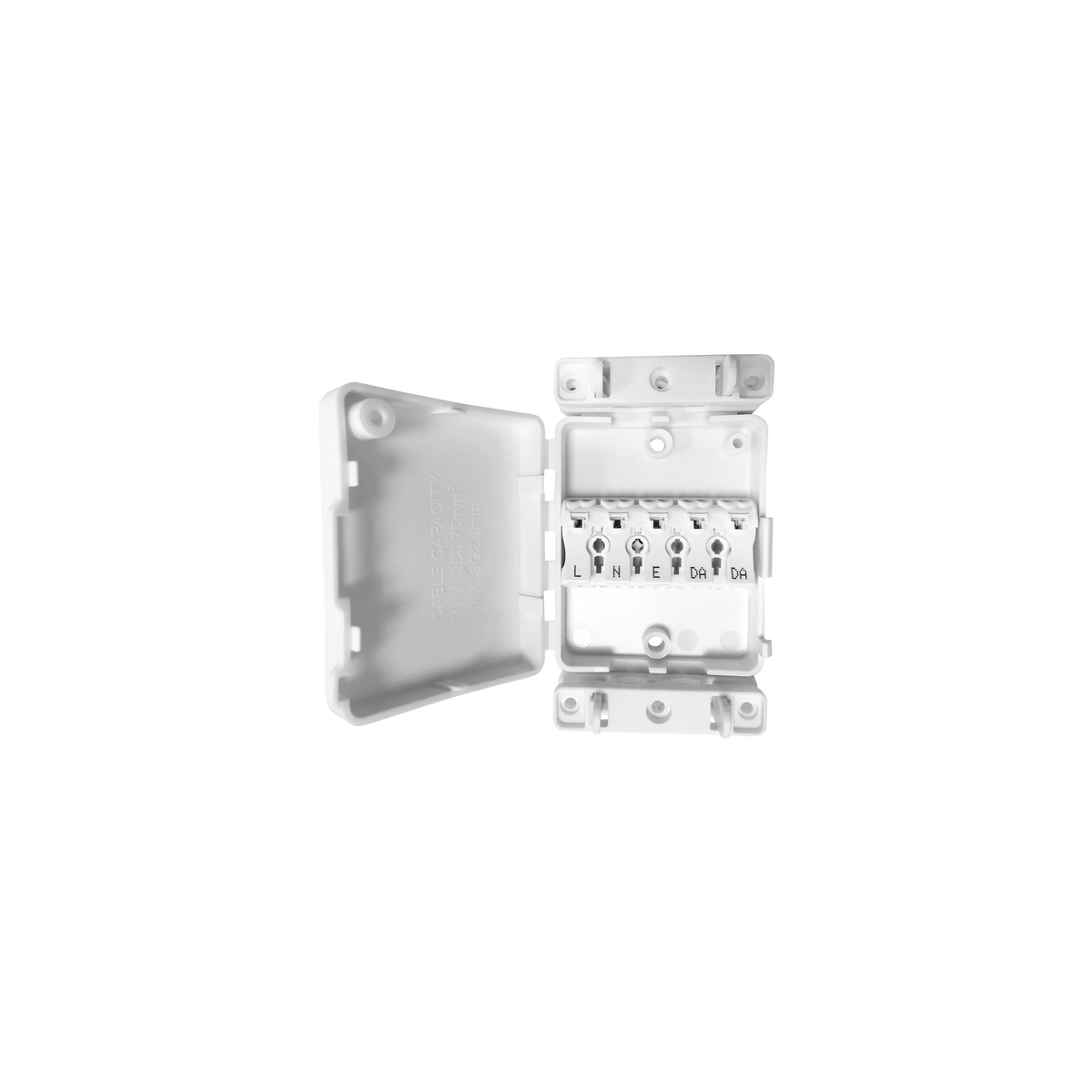

Constant Current Adjustable DALI2 Driver Preset to 1400mA <45W. Complete with Quick Connect Panel Secondary Cable, Pre-wired Go-link Dali 5 pin speed connector, 1.5m Lead, 2 Pin Plug. Secondary DC plug fits all standard Halcyon panels. Simply remove quick connect secondary plug for custom applications.
- Custom Build - Request Availability
Configure your DCC1400A-DD-45W-GL-PNL
Dali
DCC1400A-DD-45W-GL-PNL 1400mA 45W Constant Current Dali Driver
Watts
14-44.8W
Watts
14-44.8W
Specifications
DCC1400A-DD-45W-GL-PNL
Watts
14-44.8W
Input
220-240V 50/60Hz
Dimming / Control
Dali
Ingress Protection
IP20
Height
28mm
Width
44mm
Length
137mm
Classification
Must be installed above insulation
Material
PC
Electrical Class
Class II
Driver Output Voltage
10-32V
Driver Output Current
Preset to 1400mA. Adjustable 700mA, 800mA, 900mA, 1000mA, 1050mA, 1200mA, 1300mA, 1400mA
Ambient Operating Temperature
-20..+45°C
Weight
190g
Warranty
5 Year Warranty
