DCC1200A-DD-75W-GL-PNL

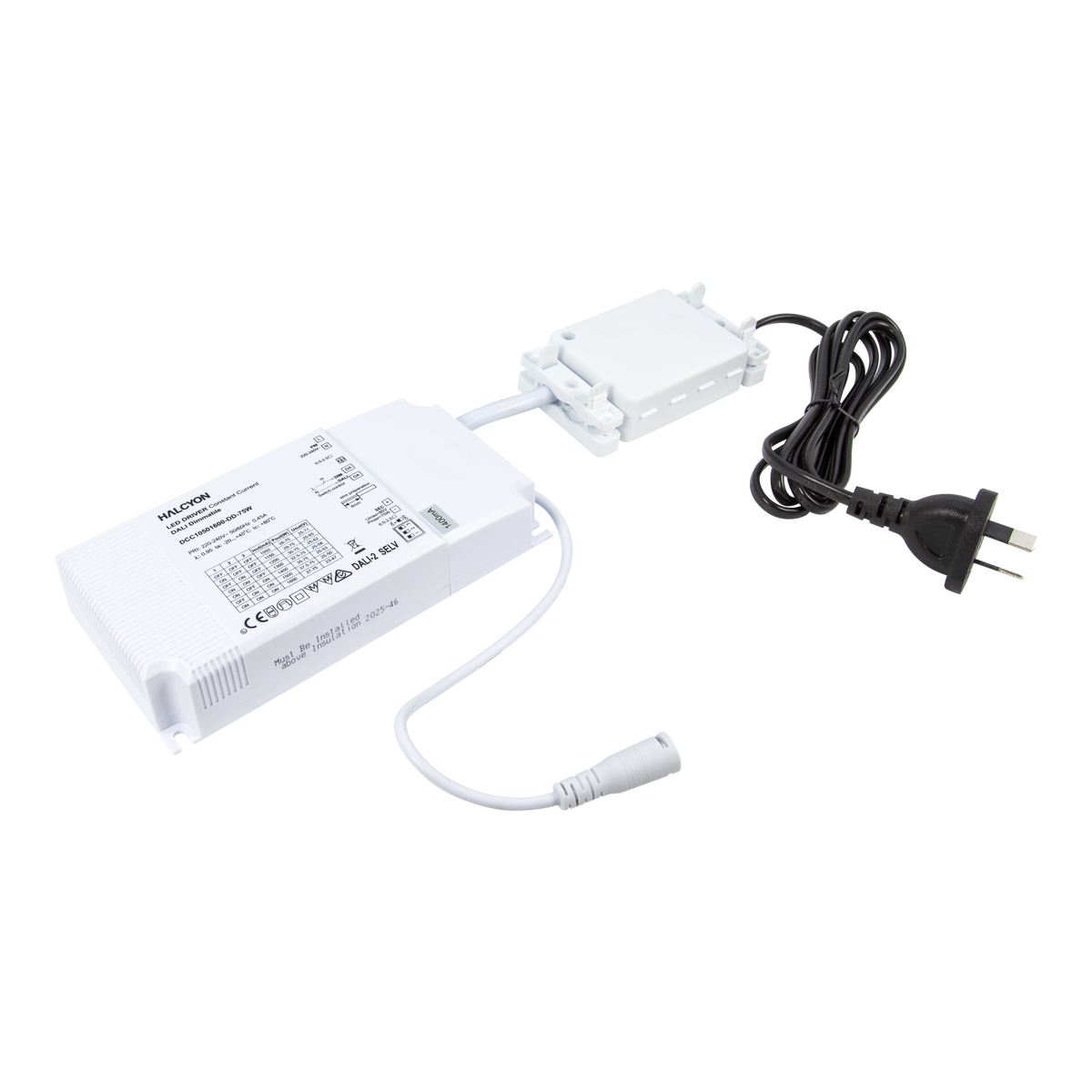

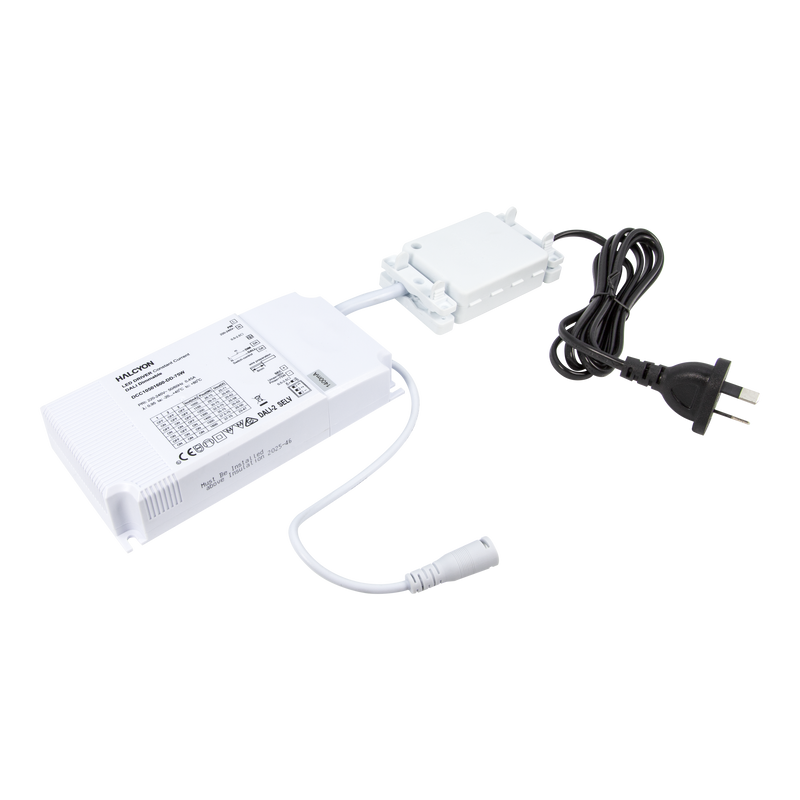

Constant Current Adjustable DALI2 Driver Preset to 1200mA <75W. Complete with Quick Connect Panel Secondary Cable, Pre-wired Go-link Dali 5 pin speed connector, 1.5m Lead, 2 Pin Plug. Secondary DC plug fits all standard Halcyon panels. Simply remove quick connect secondary plug for custom applications.
- Custom Build - Request Availability
Configure your DCC1200A-DD-75W-GL-PNL
Dali
DCC1200A-DD-75W-GL-PNL 1200mA 75W Constant Current Dali Driver
Watts
30-75W
Watts
30-75W
Specifications
DCC1200A-DD-75W-GL-PNL
Watts
30-75W
Input
220-240V 50/60Hz
Dimming / Control
Dali
Ingress Protection
IP20
Height
30mm
Width
79mm
Length
159mm
Classification
Must be installed above insulation
Electrical Class
Class II
Driver Output Current
Preset to 1200mA. Adjustable 1050mA, 1150mA, 1200mA, 1300mA, 1400mA, 1500mA, 1600mA
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
