DCC1200A-CAS-60W-PNL
Constant Current Adjustable Casambi Driver Preset to 1200mA <60W. Complete with Quick Connect Panel Secondary Cable, 1.5m Lead and 2 Pin Plug. Secondary DC plug fits all standard Halcyon panels. Simply remove quick connect secondary plug for custom applications.
- Checking stock...
Configure your DCC1200A-CAS-60W-PNL
Casambi

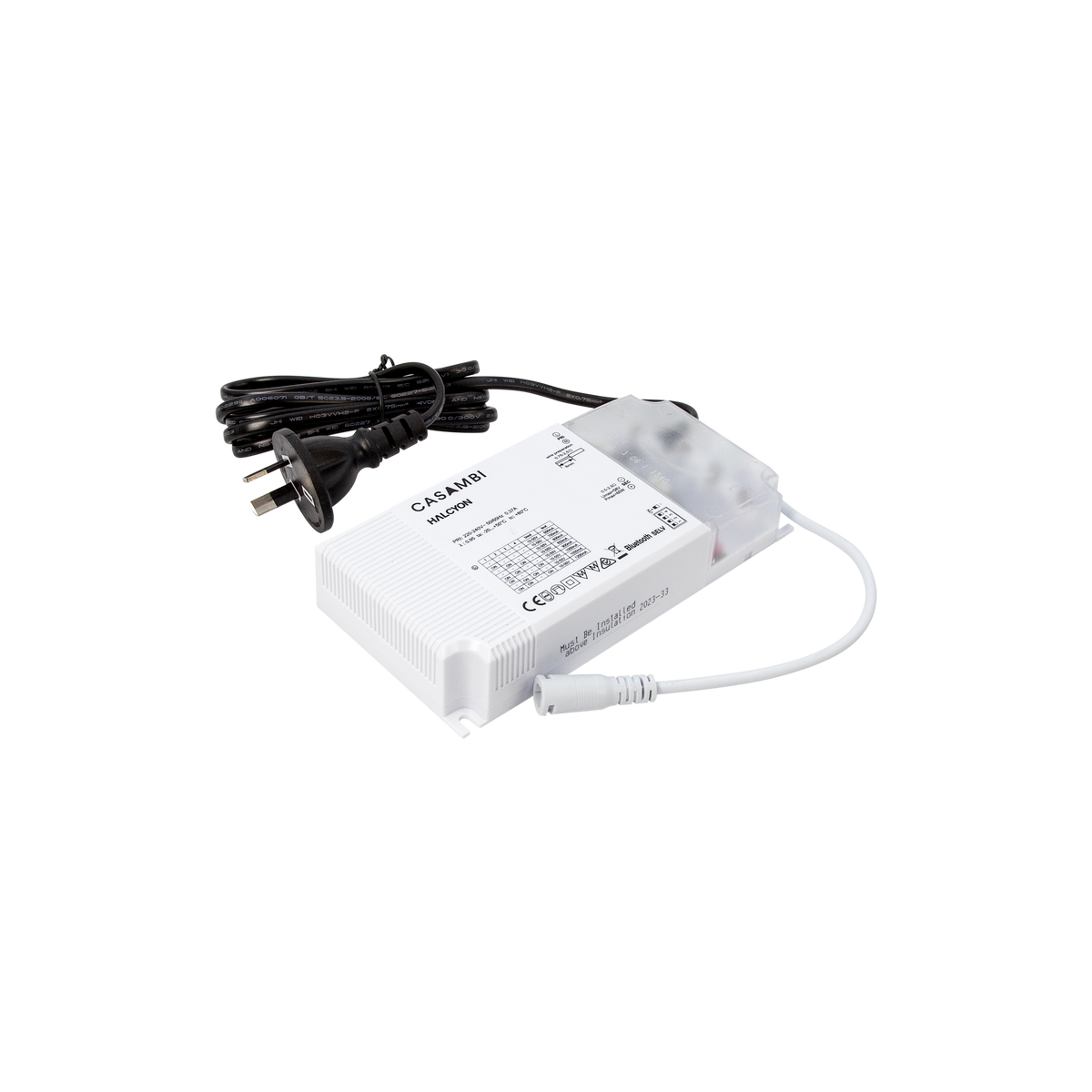

DCC1200A-CAS-60W-PNL 1200mA 60W Constant Current Casambi Driver Single Channel
Watts
12-60W
Watts
12-60W
Specifications
DCC1200A-CAS-60W-PNL
Watts
12-60W
Input
220-240V 50/60Hz
Dimming / Control
Casambi
Ingress Protection
IP20
Height
30mm
Width
79mm
Length
159mm
Classification
Must be installed above insulation
Electrical Class
Class II
Driver Output Voltage
10-50V
Driver Output Current
Preset to 1200mA. Adjustable 600mA, 700mA, 800mA, 850mA, 900mA, 1000mA, 1050mA, 1200mA
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
