1050mA 50W Constant Current Dimmable Driver
Jump to Resources
1050mA 50W Constant Current Dimmable Driver

DCC1050A-D-50W-PNL

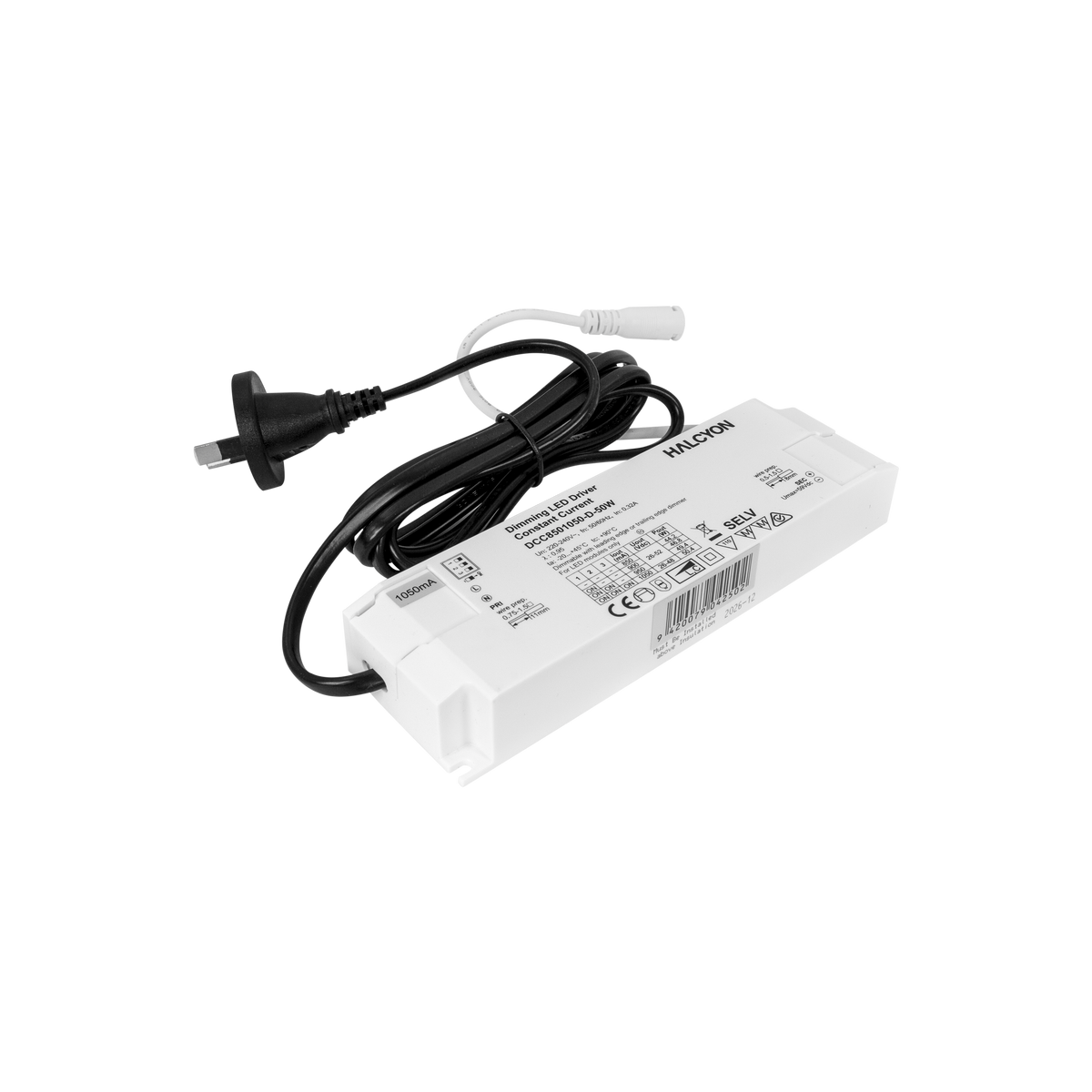

Constant Current Adjustable Phase-cut Dimmable Driver Preset to 1050mA <50W. Complete with Quick Connect Panel Secondary Cable, 1.5m Lead and 2 Pin Plug. Secondary DC plug fits all standard Halcyon panels. Simply remove quick connect secondary plug for custom applications.
  • Checking stock...

Configure your DCC1050A-D-50W-PNL

Dimmable (phase-cut)
1050mA 50W Constant Current Dimmable Driver

DCC1050A-D-50W-PNL 1050mA 50W Constant Current Dimmable Driver

Watts

27.3-50.4W

Watts

27.3-50.4W

Jump to Resources

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

DCC1050A-D-50W-PNL

Watts

27.3-50.4W

Input

220-240V 50/60Hz

Dimming / Control

Phase-Cut Dimmable

Ingress Protection

IP20

Height

25mm

Width

52mm

Length

166mm

TLAs

Flicker-free (PstLM <1.0 / SVM <0.4)

Classification

Must be installed above insulation

Material

Self-extinguishing Plastic Housing

Electrical Class

Class II

Driver Output Voltage

26-48V

Driver Output Current

Preset to 1050mA. Adjustable 850mA, 900mA, 950mA, 1050mA

Power Factor

0.95

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
