R738 KWSSWUDL
R738
- Checking stock...

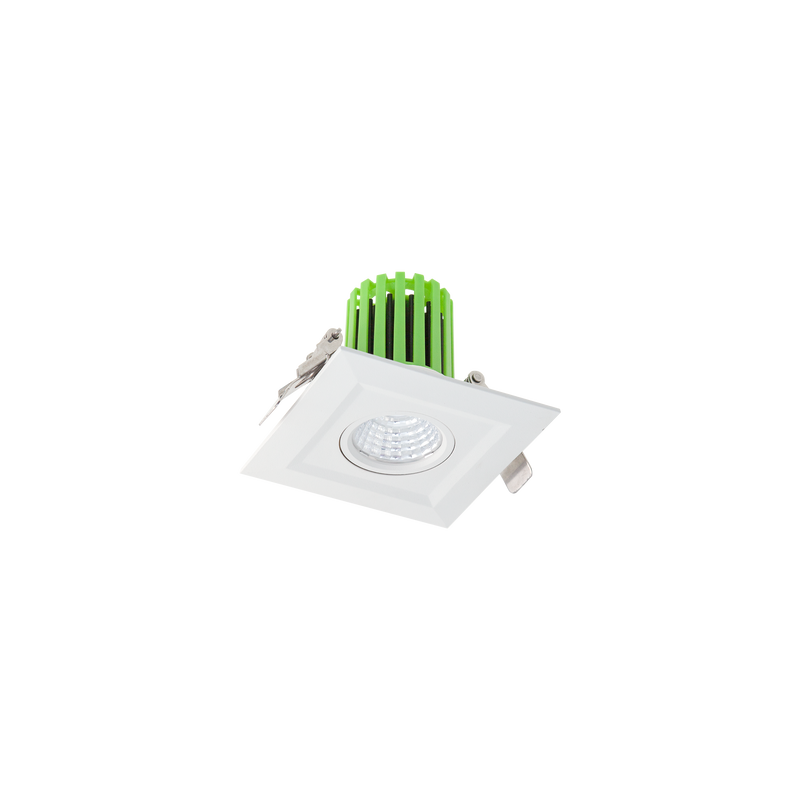

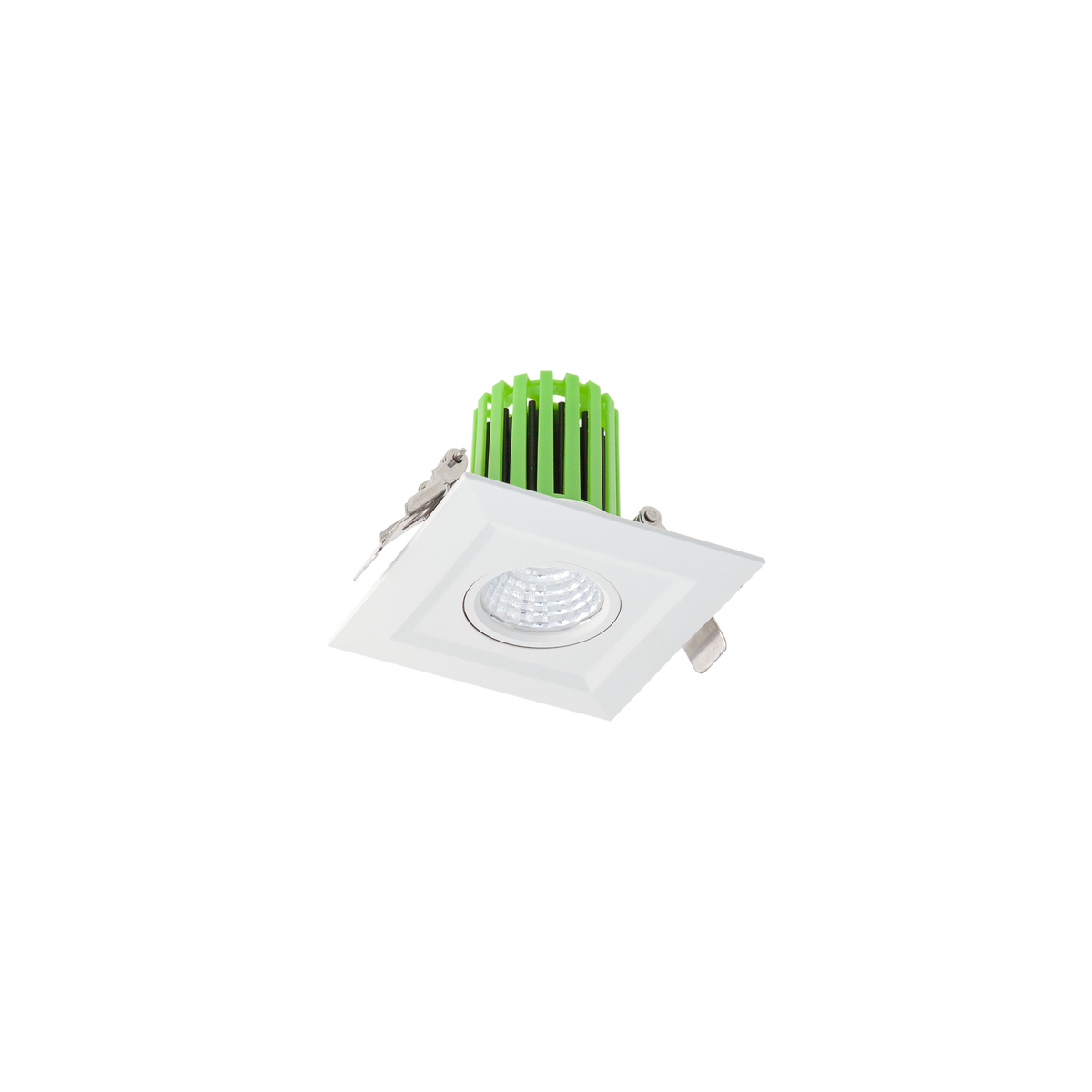

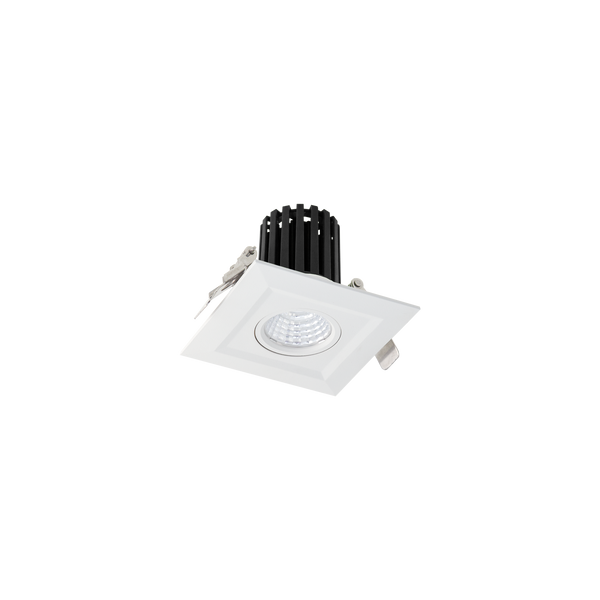

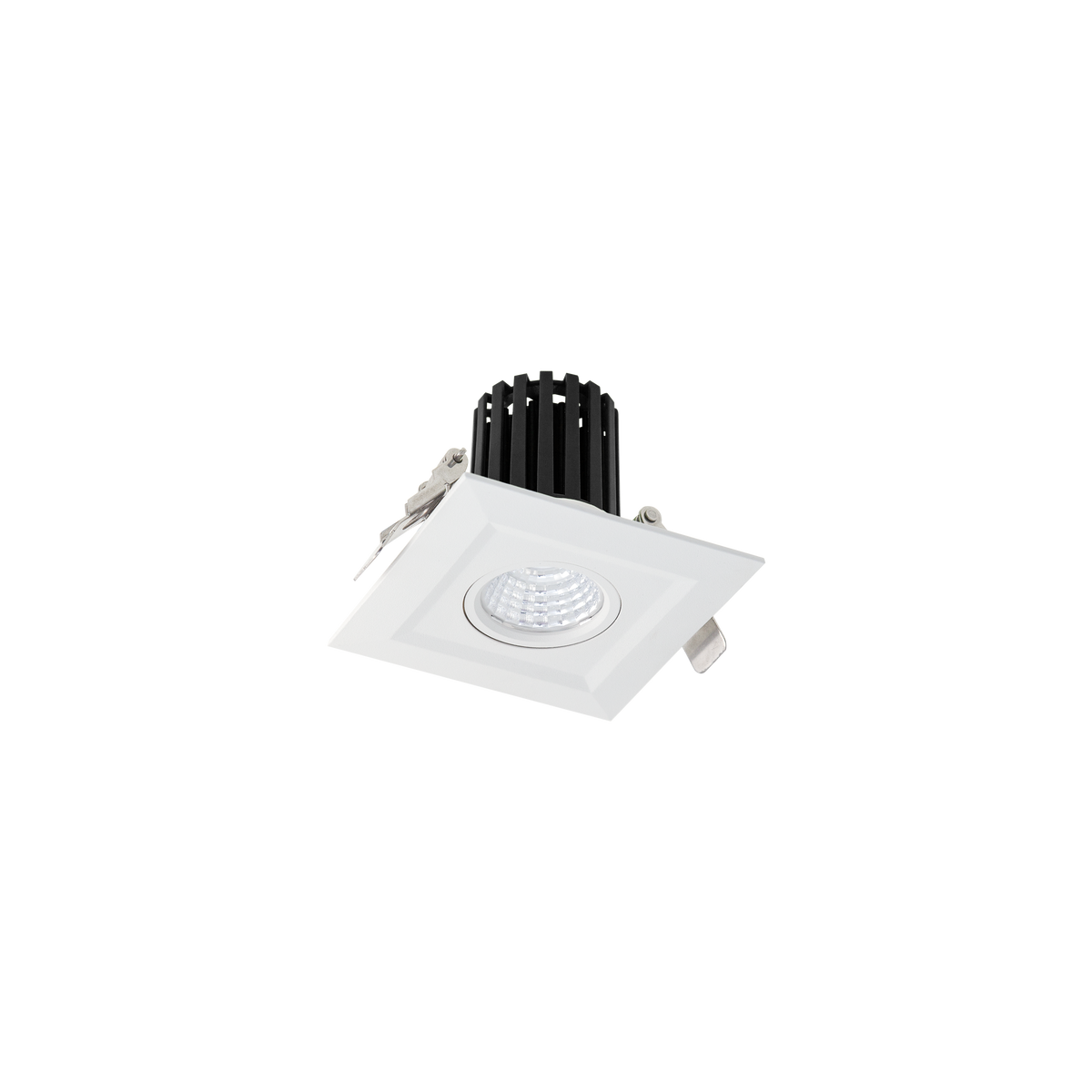

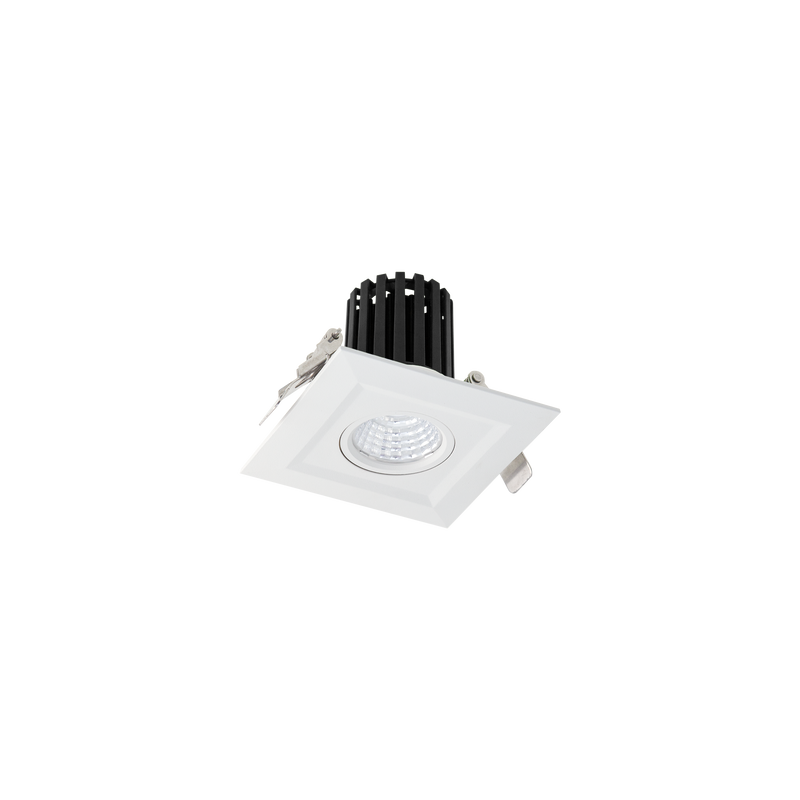

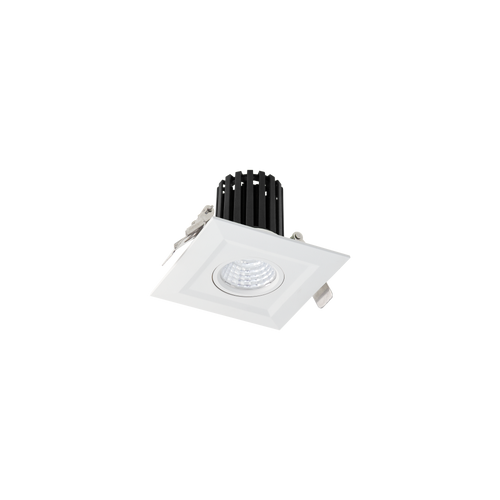

R738 KWSSWUDL 316 STS Square Smart Tilt Downlight Kit White 3000K
Lumens
Watts
Tilt Angle
880lm
12W
30°
View Options
DCC260-DX-12W-GL
Watts
6W-12W
Watts
6W-12W
Select Downlights
R738
316 STS Square Smart Tilt Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
82mm
Lumens
880lm
Watts
12W
R738

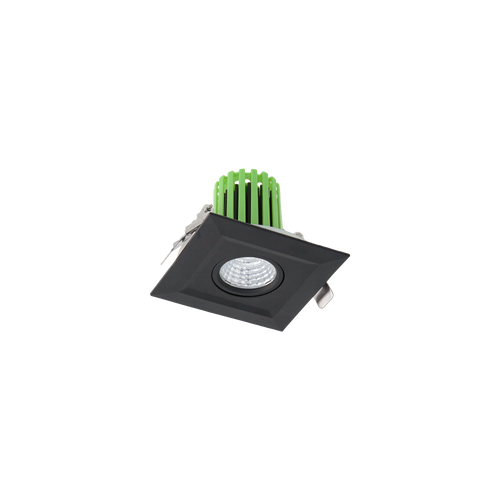

316 STS Square Smart Tilt Downlight Kit Black 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
82mm
Lumens
880lm
Watts
12W
R738

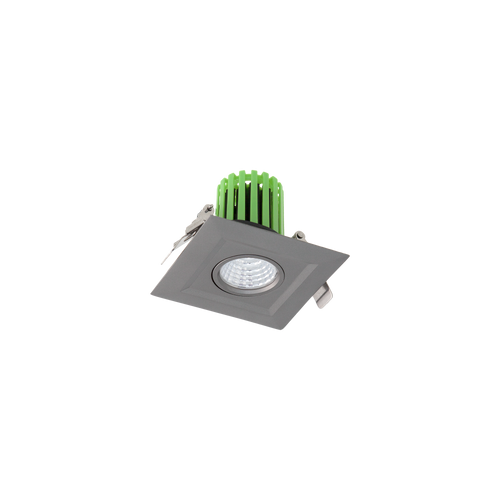

316 STS Square Smart Tilt Downlight Kit Silver 3000K
Temp.
3000K Warm White
Tilt Angle
30°
Cut out
82mm
Lumens
880lm
Watts
12W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
12W
Lumens
880lm
Beam Angle
60°
Input
240V
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
50,000hrs
Tilt Angle
30°
Ingress Protection
IP44
Cut Out
82mm
Height
80mm
Width
105mm
Length
105mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
316 Stainless Steel, Patented Heat Shield & Gasket
Electrical Class
Class II
Driver Output Current
260mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver

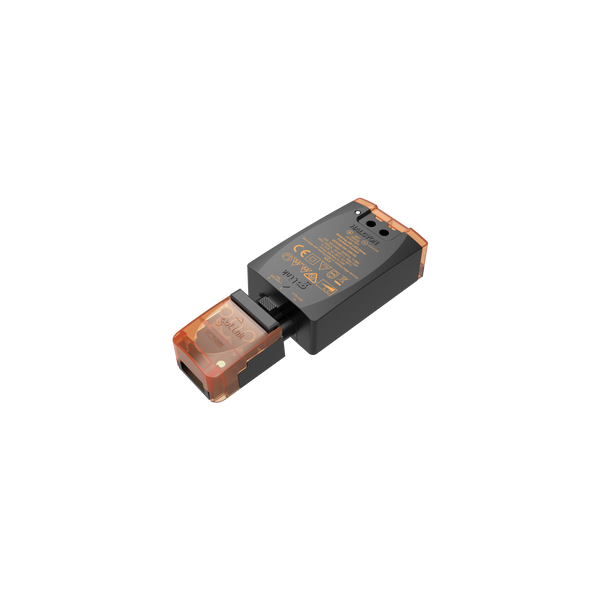

260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
