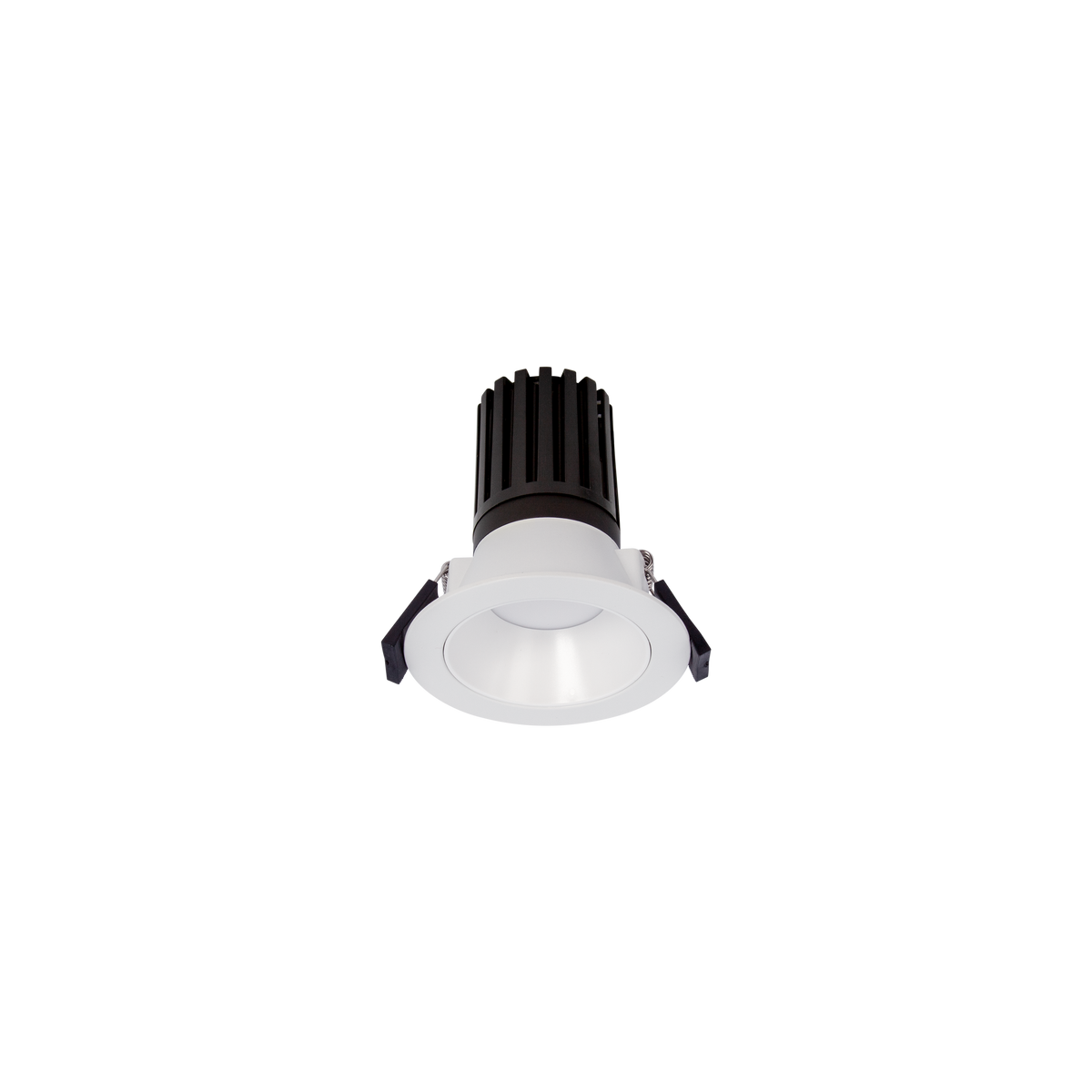

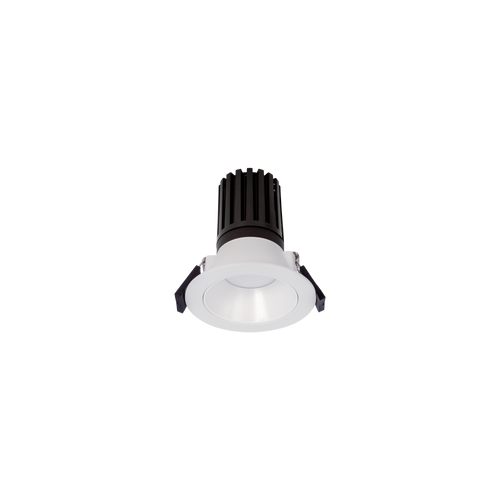

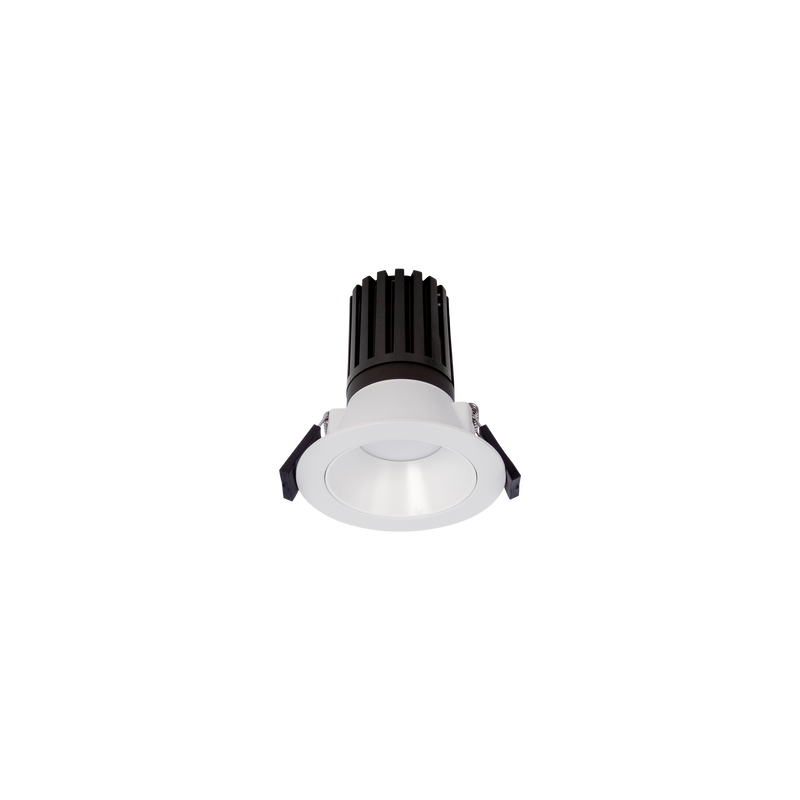

Design Standard 9.5W 230mA 3000K IP54 Recessed Downlight 90Deg c/w UID Dimmable Driver - White
Downlights
Design Standard Small Downlight Kit - Wide Beam White 3000K

R731 W3K Design Standard Small Downlight Kit - Wide Beam White 3000K

Lumens

Watts

900lm

9.5W

View Options

Driver
230mA 9W  Dimmable Constant Current DX Series Driver

DCC230-DX-9W

Watts

4.6W-9W

Watts

4.6W-9W

Add to

Select Downlights

Select driver

driver sold separately. Please select below.

Specifications

Design Standard Small Downlight Kit - Wide Beam White 3000K

Downlights

R731 W3K

Finish

White

Colour Temp

3000K Warm White

Watts

9.5W

Lumens

900lm

Beam Angle

90°

Dimming / Control

Phase-Cut Dimmable

CRI

90

Lifespan

60,000hrs (L80 B10)

Ingress Protection

IP54

Cut Out

72-82mm (Suitable for Retrofit Applications)

Diameter

93mm

Height

104mm

Binning

SDCM 3

TLAs

Flicker-free (PstLM <1.0 / SVM >0.4)

Classification

IC-F / IC-4

Height Clearance to Building Elements

0mm

Side Clearance to Building Elements

0mm

Material

Aluminium, PC

Electrical Class

Class II

Driver Output Current

230mA

Driver Included / Incorporated

Driver Included

Warranty

5 Year Warranty

230mA 9W  Dimmable Constant Current DX Series Driver

Driver

230mA 9W Dimmable Constant Current DX Series Driver

Watts

4.6W-9W

Input

220-240V 50/60Hz

Dimming / Control

Dimmable

Ingress Protection

IP20

Finish

Black

Height

28mm

Width

45mm

Length

120mm
