R545 WG3K
R545
- Custom Build - Stock Available

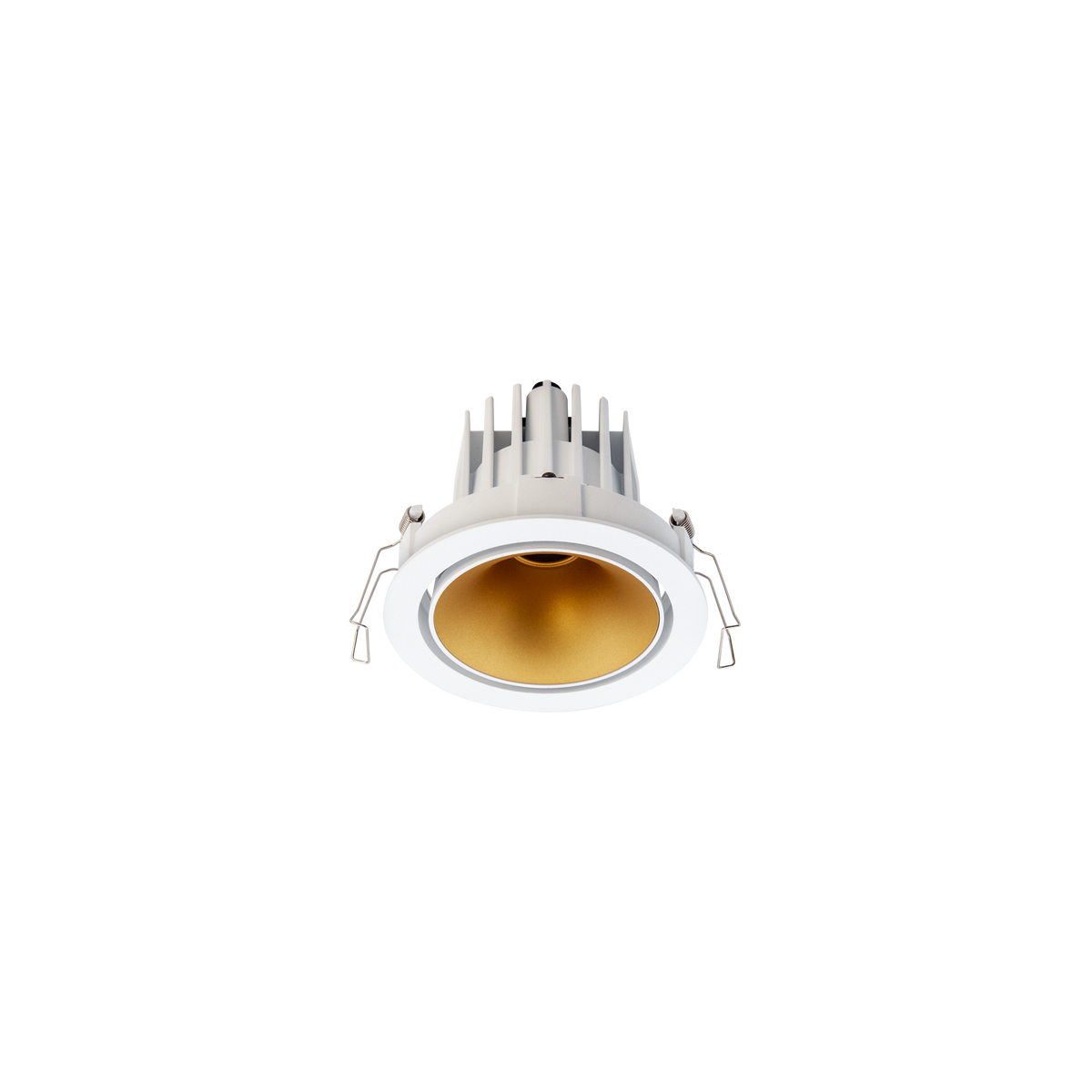

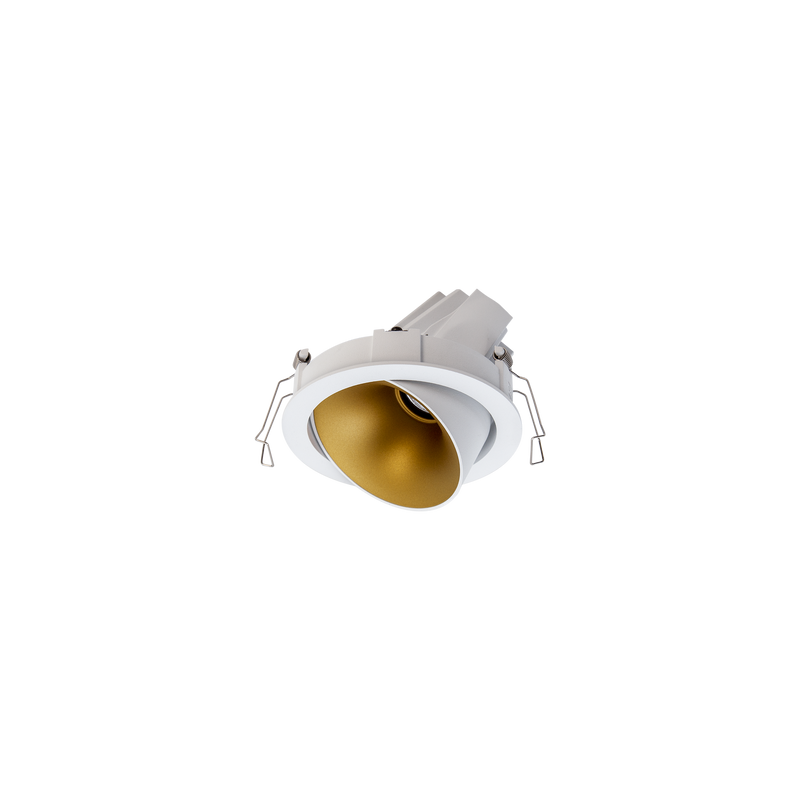

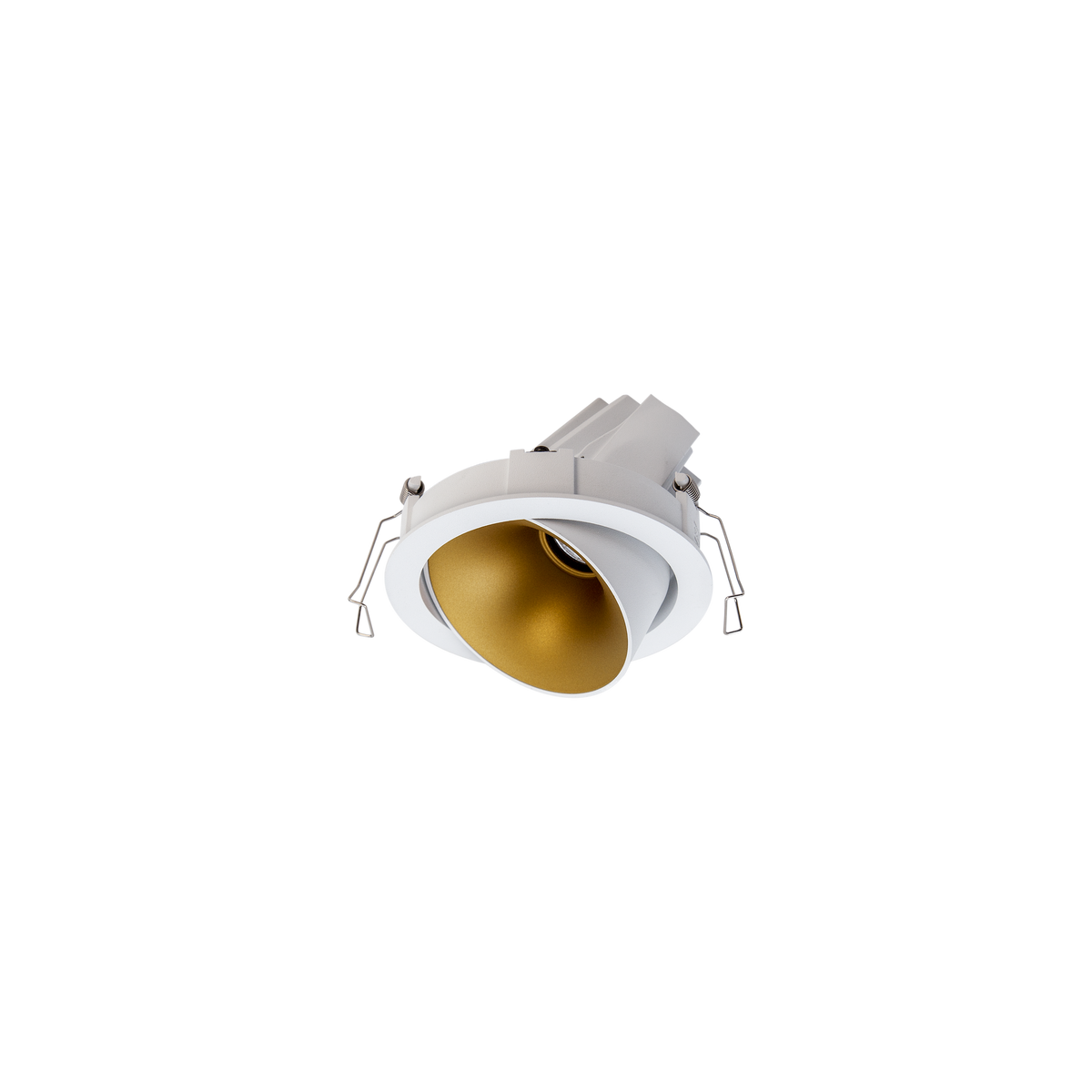

R545 WG3K Cevon Dark Art Tilt/Rotate Medium Downlight Kit White, Gold 3000K
Lumens
Watts
Tilt Angle
1000lm
14W
32°
View Options
DCC350-DX-20W
Watts
10W-20W
Watts
10W-20W
Select Downlights
R545
Cevon Dark Art Tilt/Rotate Medium Downlight Kit White, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
100mm
Lumens
1000lm
Rotate Angle
355°
Watts
14W
R545
Cevon Dark Art Tilt/Rotate Medium Downlight Kit White 3000K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
100mm
Lumens
1000lm
Rotate Angle
355°
Watts
14W
R545
Cevon Dark Art Tilt/Rotate Medium Downlight Kit White, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
100mm
Lumens
1000lm
Rotate Angle
355°
Watts
14W
R545
Cevon Dark Art Tilt/Rotate Medium Downlight White, High Gloss Black 3K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
100mm
Lumens
1000lm
Rotate Angle
355°
Watts
14W
R545
Cevon Dark Art Tilt/Rotate Medium Downlight Kit Black, Silver 3000K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
100mm
Lumens
1000lm
Rotate Angle
355°
Watts
14W
R545
Cevon Dark Art Tilt/Rotate Medium Downlight Black, High Gloss Black 3K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
100mm
Lumens
1000lm
Rotate Angle
355°
Watts
14W
R545
Cevon Dark Art Tilt/Rotate Medium Downlight Kit Black, Gold 3000K
Temp.
3000K Warm White
Tilt Angle
32°
Cut out
100mm
Lumens
1000lm
Rotate Angle
355°
Watts
14W
Specifications
Finish
White, Gold
Colour Temp
3000K Warm White
Watts
14W
Lumens
1000lm
Beam Angle
40°
Dimming / Control
Phase-Cut Dimmable
CRI
97
Lifespan
55,000hrs (L90)
Tilt Angle
32°
Rotate Angle
355°
Ingress Protection
IP20
Cut Out
100mm
Diameter
105mm
Height
82mm
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium
Electrical Class
Class II
Driver Output Current
350mA
Driver Included / Incorporated
Driver Included
Installation Note
Cut holes with care, slim trim design
Warranty
5 Year Warranty
Driver
350mA 20W Dimmable Constant Current DX Series Driver
Watts
10W-20W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
45mm
Length
120mm
