R535-BB3K-D-40D
R535
- Custom Build - Stock Available

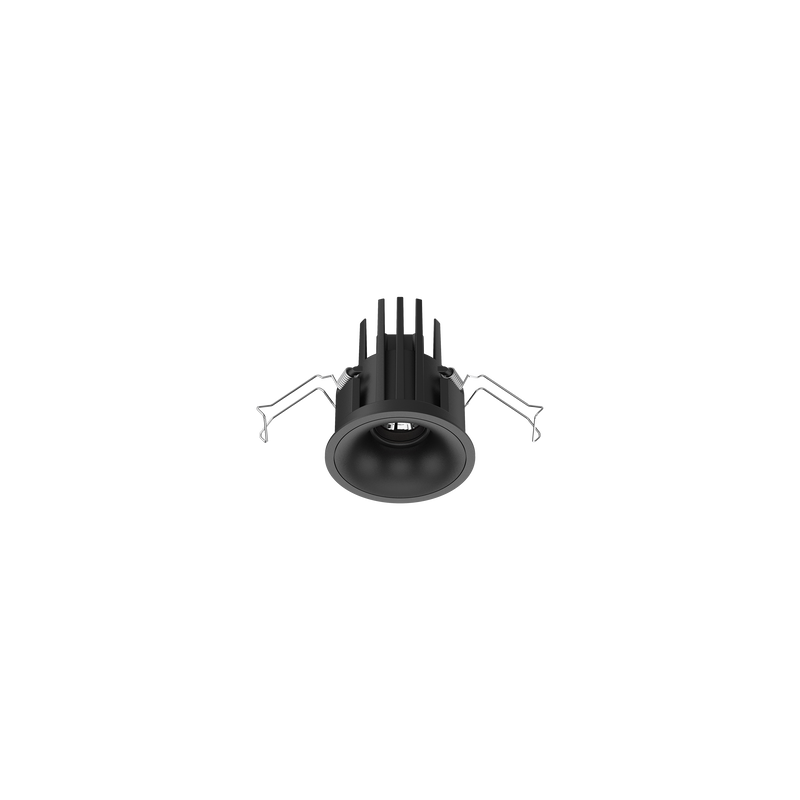

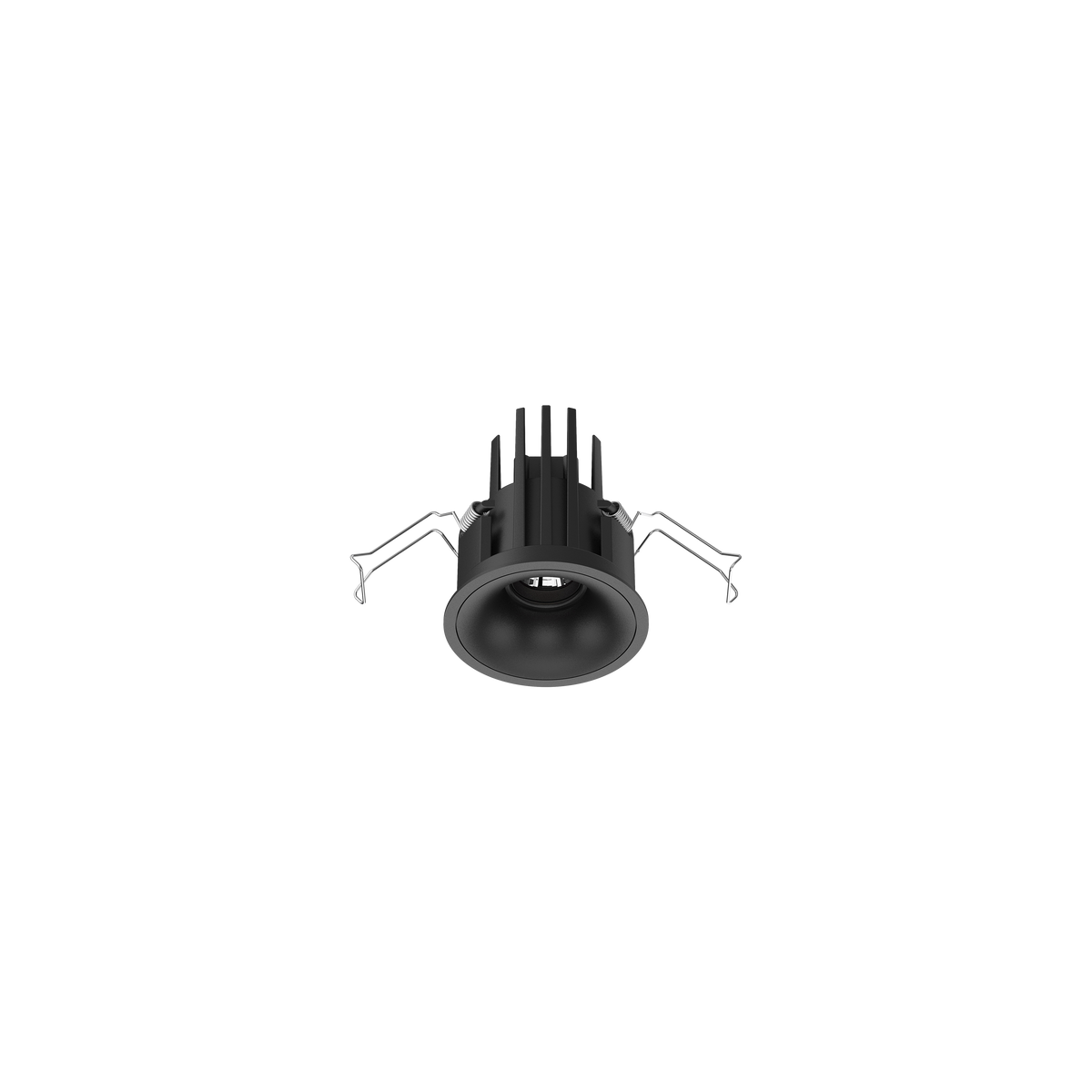

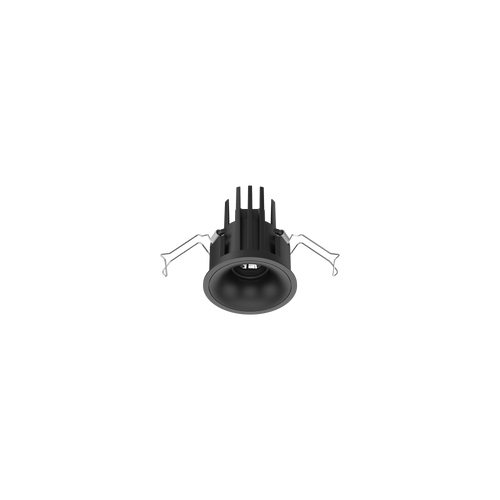

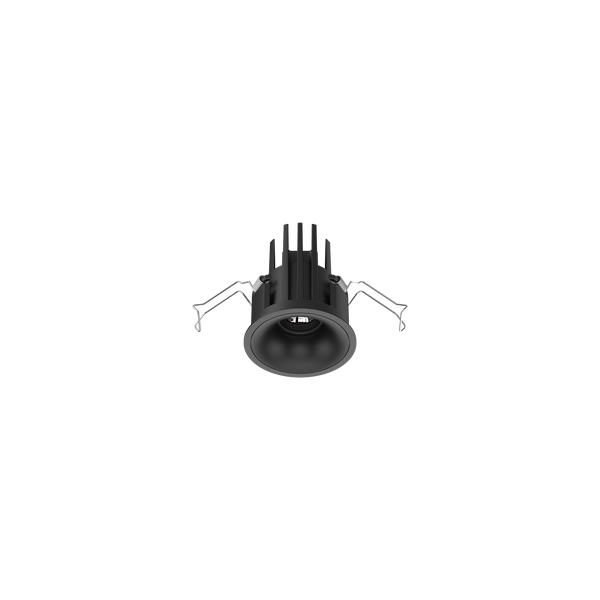

R535-BB3K-D-40D Cevon Small Darklight Slim Trim Downlight Kit Black 3000K
Lumens
Watts
725lm
11W
View Options
DCC260-DX-12W-GL
Watts
6W-12W
Watts
6W-12W
Select Downlights
R535
Cevon Small Darklight Slim Trim Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
60mm
Lumens
725lm
Watts
11W
R535

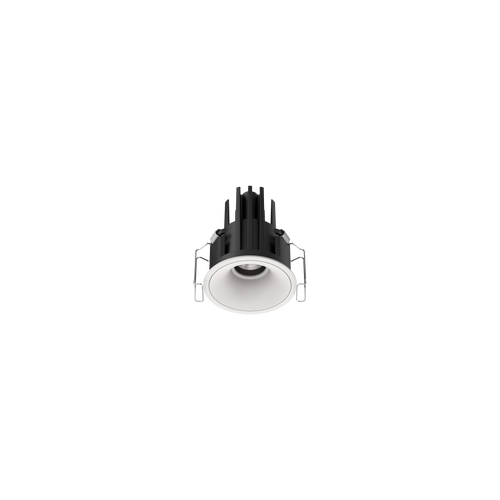

Cevon Small Darklight Slim Trim Downlight Kit White 3000K
Temp.
3000K Warm White
Cut out
60mm
Lumens
760lm
Watts
11W
R535
Cevon Small Darklight Slim Trim Downlight Kit White, Silver 3000K
Temp.
3000K Warm White
Cut out
60mm
Lumens
770lm
Watts
11W
R535
Cevon Small Darklight Slim Trim Downlight White, High Gloss Black 3K
Temp.
3000K Warm White
Cut out
60mm
Lumens
750lm
Watts
11W
R535

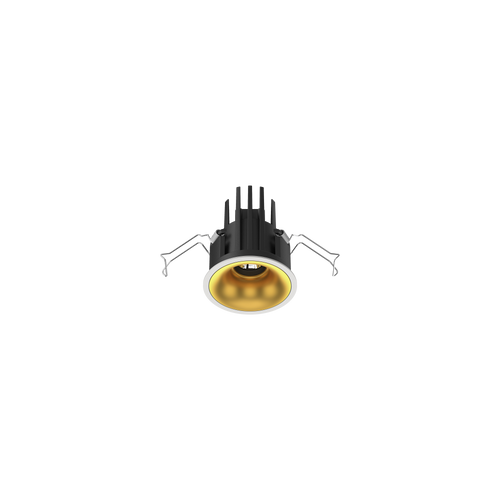

Cevon Small Darklight Slim Trim Downlight Kit White, Gold 3000K
Temp.
3000K Warm White
Cut out
60mm
Lumens
740lm
Watts
11W
R535
Cevon Small Darklight Slim Trim Downlight Kit White, Black 3000K
Temp.
3000K Warm White
Cut out
60mm
Lumens
725lm
Watts
11W
R535
Cevon Small Darklight Slim Trim Downlight Kit Black, Silver 3000K
Temp.
3000K Warm White
Cut out
60mm
Lumens
770lm
Watts
11W
R535

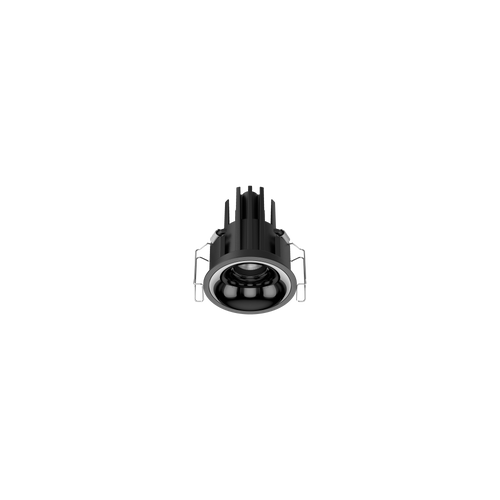

Cevon Small Darklight Slim Trim Downlight Black, High Gloss Black 3K
Temp.
3000K
Cut out
60mm
Lumens
750lm
Watts
11W
R535
Cevon Small Darklight Slim Trim Downlight Kit Black, Gold 3000K
Temp.
3000K Warm White
Cut out
60mm
Lumens
740lm
Watts
11W
Specifications
Finish
Black
Colour Temp
3000K Warm White
Watts
11W
Lumens
725lm
Beam Angle
40°
Input
220-240V 50/60Hz
Dimming / Control
Phase-Cut Dimmable
CRI
97
Lifespan
105,000hrs (L90 B10)
Ingress Protection
IP43
Cut Out
60mm
Diameter
66mm
Height
72mm
Binning
SDCM 2
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC
Height Clearance to Building Elements
0mm
Side Clearance to Building Elements
0mm
Material
Aluminium, Glass
Electrical Class
Class II
Driver Output Current
260mA
Driver Included / Incorporated
Driver Included
Installation Note
Cut holes with care, slim trim design
Warranty
5 Year Warranty
Driver
260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
Downloads
