R272-W4KA
R272
- Custom Build - Stock Available

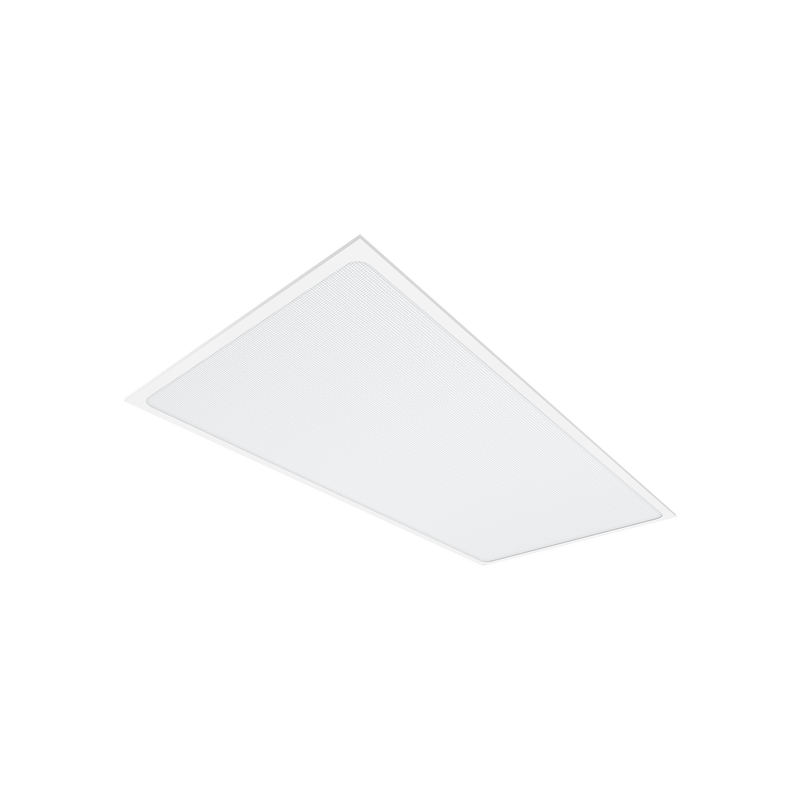

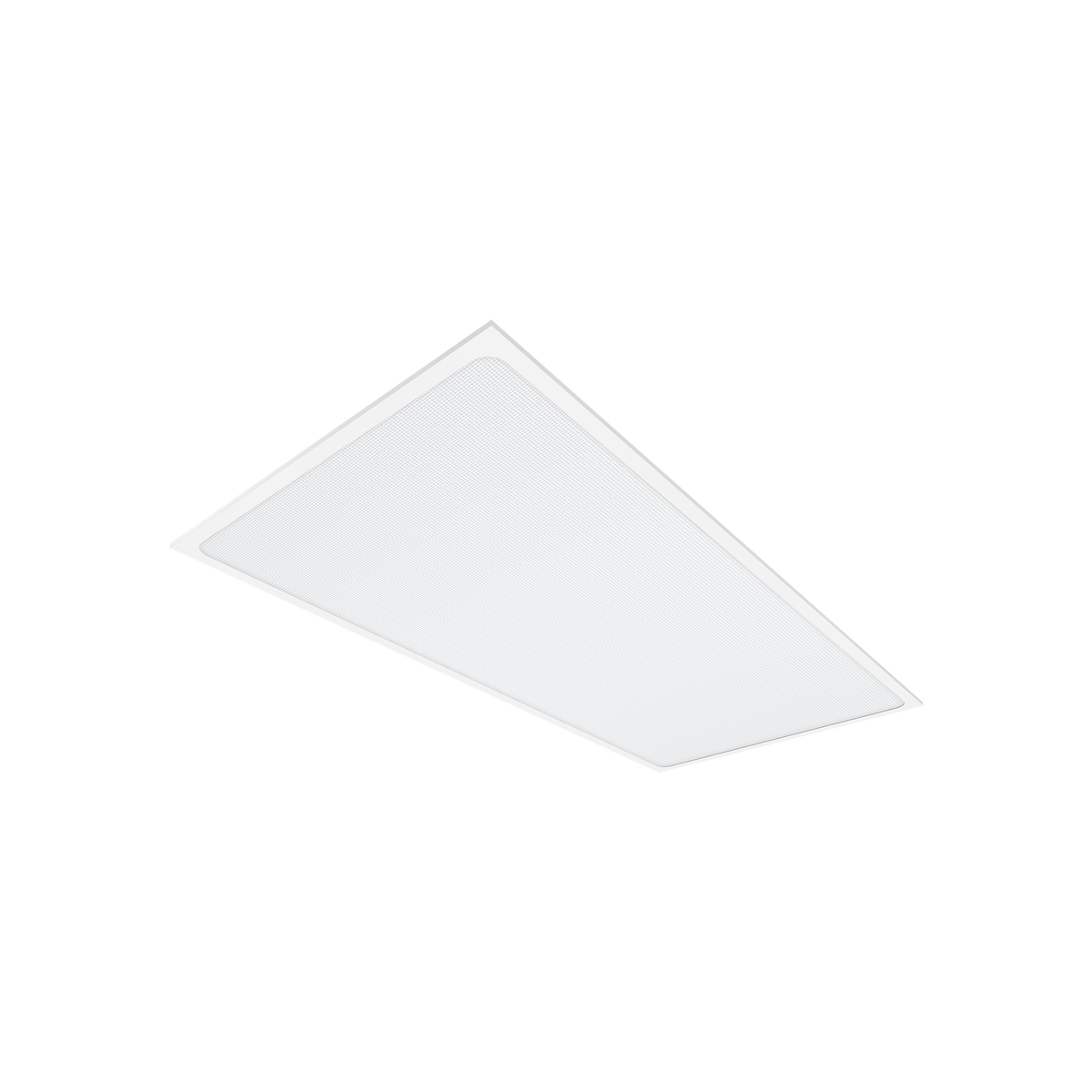

R272-W4KA 12x6 Designline PC Panel Select 40-54W White 4000K
Lumens
Watts
5050lm / 5700lm / 6100lm / 6500lm
40W / 46W / 50W / 54W
View Options
-
12x6 Surface Mount Kit White
-
12x6 Recessed Frame Kit White
-
12x3 & 12x6 Suspension Kit Stainless Steel
-
Cable Restraint 300mm (4 pack)
Select Panels
R272
12x6 Designline PC Panel Select 40-54W White 4000K
Temp.
4000K Natural White
Lumens
5050lm / 5700lm / 6100lm / 6500lm
Watts
40W / 46W / 50W / 54W
R272
12x6 Designline PC Panel Phase-cut Dimmable White 4000K
Temp.
4000K Natural White
Lumens
5050lm
Watts
40W
R272
12x6 Designline PC Panel Dali White 4000K
Temp.
4000K Natural White
Lumens
6500lm
Watts
54W
R272
12x6 Designline PC Panel Casambi White 4000K
Temp.
4000K Natural White
Lumens
5700lm
Watts
46W
R272
12x6 Designline PC Panel Select 40-54W Black 4000K
Temp.
4000K Natural White
Lumens
5050lm / 5700lm / 6100lm / 6500lm
Watts
40W / 46W / 50W / 54W
R272
12x6 Designline PC Panel Phase-cut Dimmable Black 4000K
Temp.
4000K Natural White
Lumens
5050lm
Watts
40W
R272
12x6 Designline PC Panel Dali Black 4000K
Temp.
4000K Natural White
Lumens
6500lm
Watts
54W
R272
12x6 Designline PC Panel Casambi Black 4000K
Temp.
4000K Natural White
Lumens
5700lm
Watts
46W
Specifications
Finish
White
Colour Temp
4000K Natural White
Watts
40W / 46W / 50W / 54W
Lumens
5050lm / 5700lm / 6100lm / 6500lm
Beam Angle
100°
Input
220-240V 50/60Hz
Dimming / Control
Non-Dimmable
CRI
95
Lifespan
72,000hrs (L80 B10)
Ingress Protection
IP40
RAL Colour
RAL9016
Height
33mm
Width
595mm
Length
1195mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F, Driver must be installed above insulation
Material
PC Diffuser, SPCC Tray, Aluminium
Electrical Class
Class II
Driver Output Current
Selectable 1050mA, 1200mA, 1300mA, 1400mA
Driver Included / Incorporated
Driver Included
Ambient Operating Temperature
-20..+40°C
Weight
4556g
Warranty
5 Year Warranty
