R271-W4K-DD
R271
- Custom Build - Request Availability

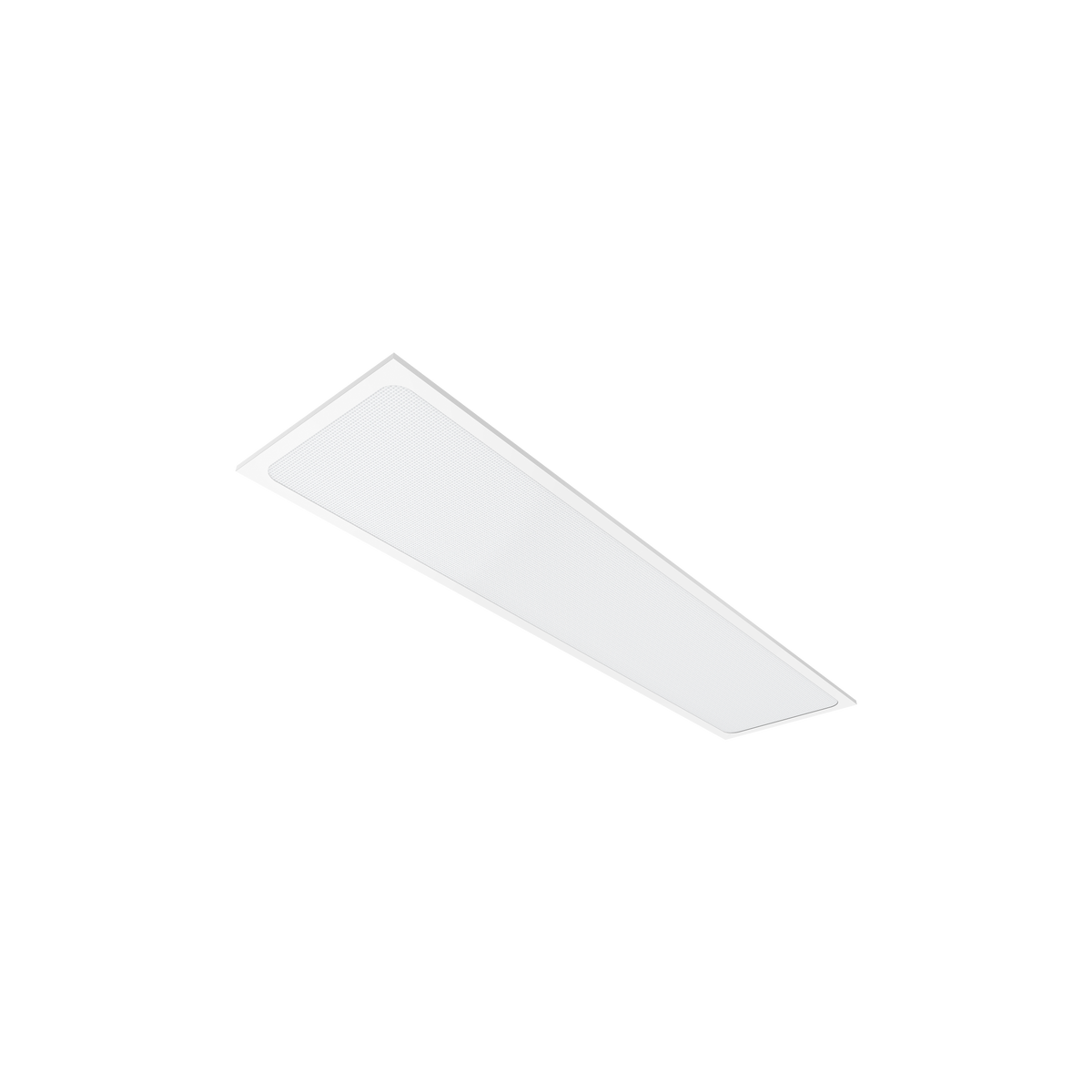

R271-W4K-DD 12x3 Designline PC Panel Dali White 4000K
Lumens
Watts
3900lm
34W
View Options
-
12x3 Surface Mount Kit White
-
12x3 Recessed Frame Kit White
-
12x3 & 12x6 Suspension Kit Stainless Steel
-
Cable Restraint 300mm (4 pack)
Select Panels
R271
12x3 Designline PC Panel Dali White 4000K
Temp.
4000K Natural White
Lumens
3900lm
Watts
34W
R271
12x3 Designline PC Panel Select 24-35W White 4000K
Temp.
4000K Natural White
Lumens
3000lm, 3350lm, 3750lm or 4025lm (Selectable)
Watts
24W, 28W, 32W or 35W
R271
12x3 Designline PC Panel Phase-cut Dimmable White 4000K
Temp.
4000K Natural White
Lumens
3900lm
Watts
34W
R271
12x3 Designline PC Panel Casambi White 4000K
Temp.
4000K Natural White
Lumens
3900lm
Watts
34W
R271
12x3 Designline PC Panel Select 24-35W Black 4000K
Temp.
4000K Natural White
Lumens
3000lm, 3350lm, 3750lm or 4025lm (Selectable)
Watts
24W, 28W, 32W or 35W
R271
12x3 Designline PC Panel Phase-cut Dimmable Black 4000K
Temp.
4000K Natural White
Lumens
3900lm
Watts
34W
R271
12x3 Designline PC Panel Dali Black 4000K
Temp.
4000K Natural White
Lumens
3900lm
Watts
34W
R271
12x3 Designline PC Panel Casambi Black 4000K
Temp.
4000K Natural White
Lumens
3900lm
Watts
34W
Specifications
Finish
White
Colour Temp
4000K Natural White
Watts
34W
Lumens
3900lm
Beam Angle
100°
Input
220-240V 50/60Hz
Dimming / Control
Dali
CRI
95
Lifespan
72,000hrs (L80 B10)
Ingress Protection
IP40
Height
33mm
Width
295mm
Length
1195mm
Binning
SDCM 3
TLAs
Flicker-free (PstLM <1.0 / SVM >0.4)
Classification
IC-F, Driver must be installed above insulation
Material
Aluminium, SPCC, PC
Electrical Class
Class II
Driver Output Current
900mA
Driver Included / Incorporated
Driver Included
Power Factor
0
Warranty
5 Year Warranty
