600-1200mA 60W Constant Current Casambi Driver Single Channel

DCC6001200-CAS-3060W-PNL

All DCC6001200-CAS-3060W-PNL

DCC6001200-CAS-3060W-PNL

  • Checking stock...

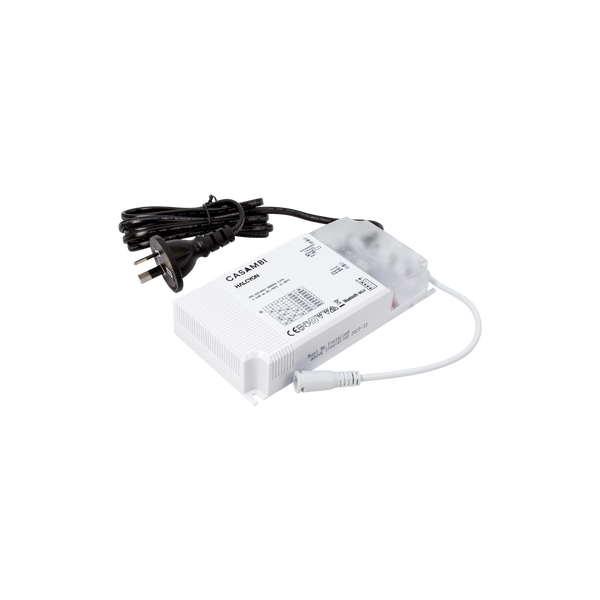

Driver Casambi Pri:240V Sec:10-50V 600-1200mA CC 30-60W Standard c/w Quick Connect Panel Secondary Cable, 1.5m Lead, 2 Pin Plug
Casambi
600-1200mA 60W Constant Current Casambi Driver Single Channel

DCC6001200-CAS-3060W-PNL 600-1200mA 60W Constant Current Casambi Driver Single Channel

Watts

30W-60W

Watts

30W-60W

Add to

Jump to

Specifications Downloads

Select driver

driver sold separately. Please select below.

Specifications

600-1200mA 60W Constant Current Casambi Driver Single Channel

Casambi

DCC6001200-CAS-3060W-PNL

Watts

30W-60W

Input

220-240V 50/60Hz

Dimming / Control

Casambi

Ingress Protection

IP20

Height

30mm

Width

79mm

Length

159mm

Electrical Class

Class II

Driver Output Voltage

10-50V

Driver Output Current

Adjustable 600mA, 700mA, 800mA, 850mA, 900mA, 1000mA, 1050mA, 1200mA

Installation Note

Must be installed above insulation

Warranty

5 Year Warranty
