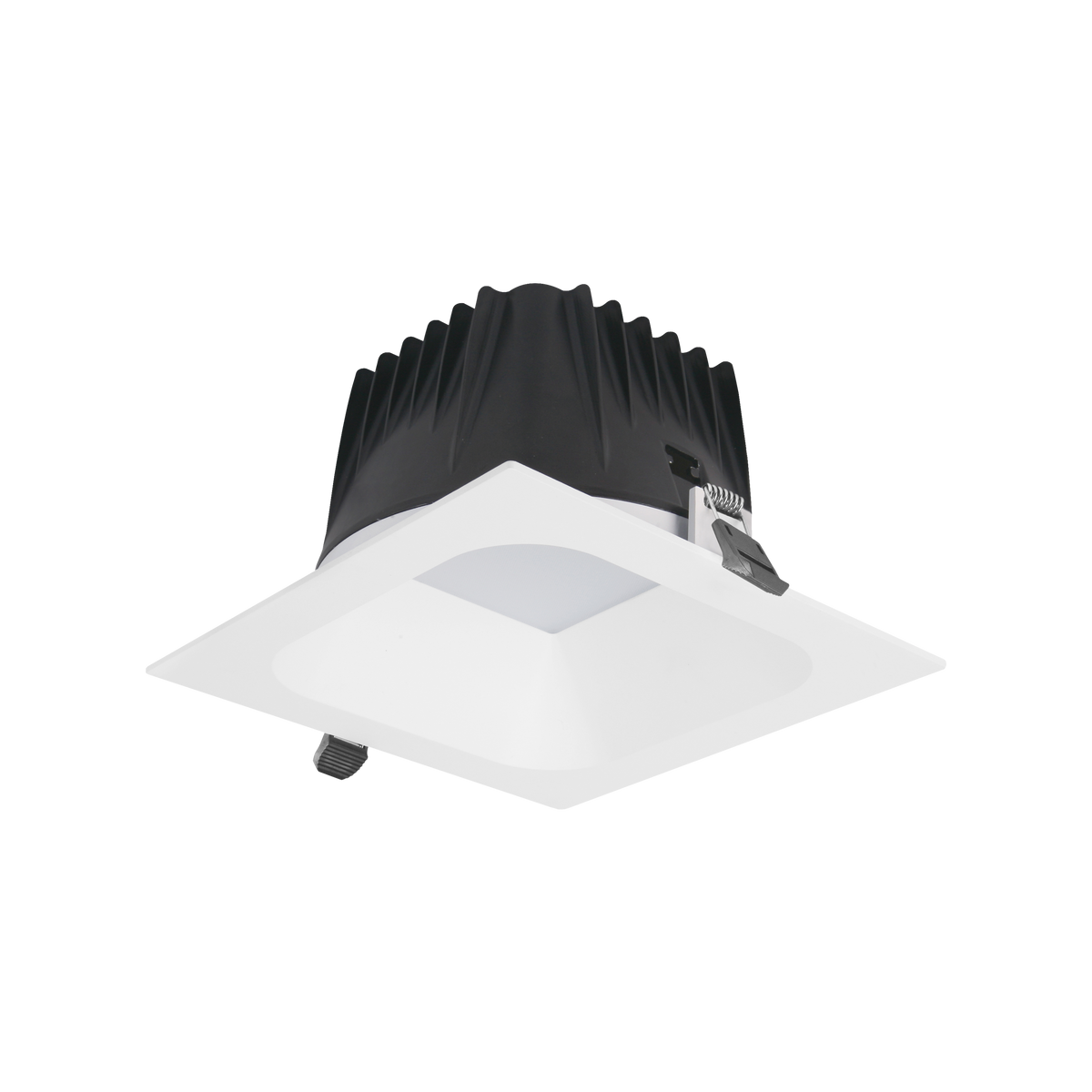

Downlight Square Large 18.5W/26W 3K/4K 500mA/700mA CC White - Driver Sold Separately
Downlights
Square Commercial Large Downlight White 3000K / 4000K

R743 W34 Square Commercial Large Downlight White 3000K / 4000K

Lumens

Watts

3030lm

26W

Lumens

Watts

3030lm

26W

Driver

Add Driver

driver not included

View Options

Add to

Select driver

driver sold separately. Please select below.

Specifications

Square Commercial Large Downlight White 3000K / 4000K

Downlights

R743 W34

Finish

White

Colour Temp

3000K / 4000K

Watts

26W

Lumens

3030lm

Beam Angle

70°

Dimming / Control

Dimmable

CRI

90

Lifespan

50,000hrs (L80)

Ingress Protection

IP54

Cut Out

200mm

Height

120mm

Width

212mm

Length

212mm

Binning

SDCM 3

Classification

IC

Height Clearance to Building Elements

25mm

Side Clearance to Building Elements

25mm

Material

Aluminium

Electrical Class

Class III

Driver Output Current

Adjustable 500mA or 700mA

Driver Included / Incorporated

Driver not included, sold separately

Warranty

5 Year Warranty

Driver

None
