All Exterior LED501 W46XPMS

LED501

  • Checking stock...
Pro Series Batten IP65 4ft 36W Pri:240V 4K/6K 3750lm CRI90 Sensor
Battens

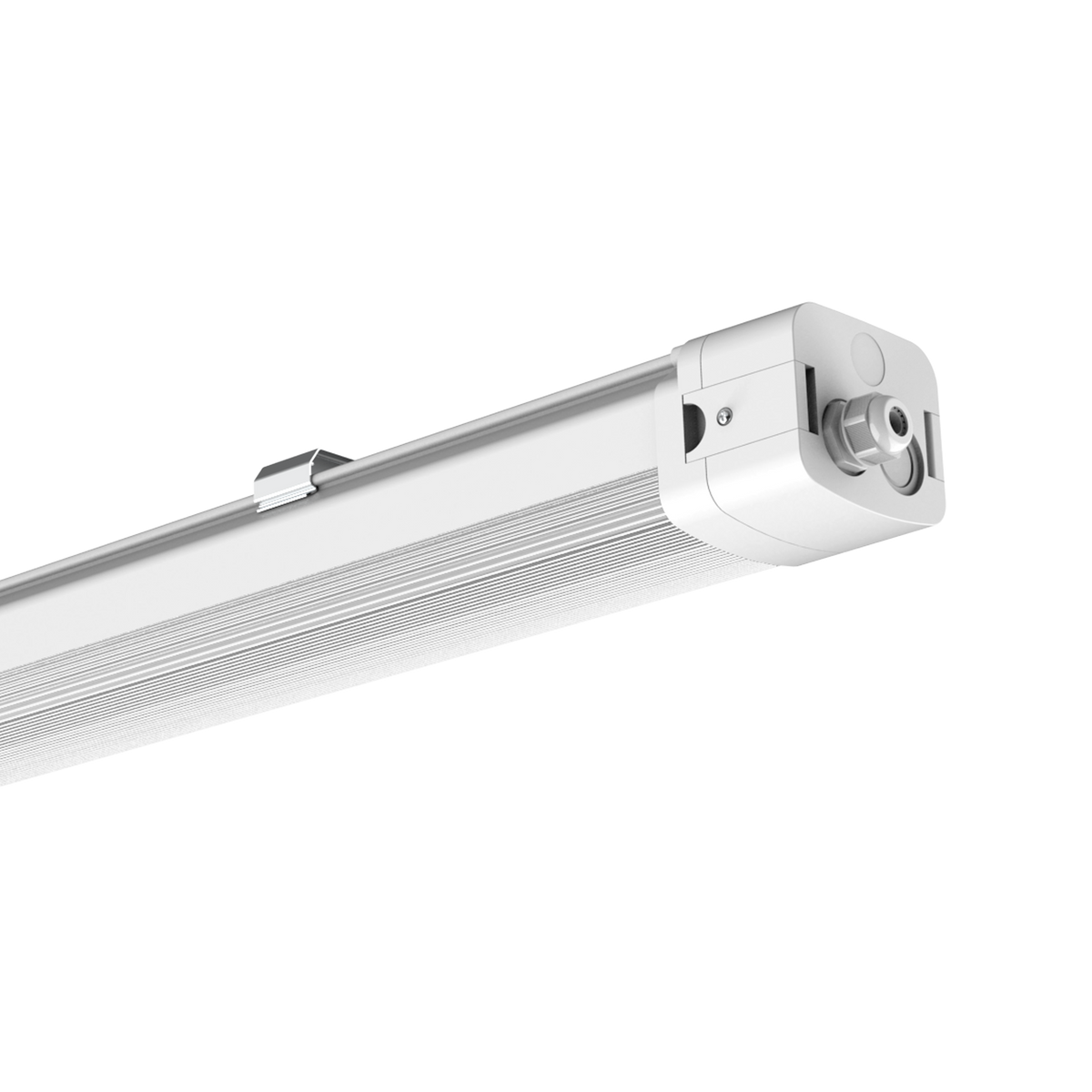

4ft Pro Series IP Batten Motion Sensor White 4000K / 6000K

LED501 W46XPMS 4ft Pro Series IP Batten Motion Sensor White 4000K / 6000K

Lumens

Watts

3750lm

36W

Lumens

Watts

3750lm

36W

Add to

Select driver

driver sold separately. Please select below.

Specifications

4ft Pro Series IP Batten Motion Sensor White 4000K / 6000K

Battens

LED501 W46XPMS

Finish

White

Colour Temp

4000K or 6000K (Selectable)

Watts

36W

Lumens

3750lm

Beam Angle

120°

Input

220-240V 50/60Hz

Dimming / Control

Non-Dimmable

CRI

90

Lifespan

72,000hrs (L80)

Ingress Protection

IP65

Height

71mm

Width

83mm

Length

1203mm

Binning

SDCM 5

TLAs

Flicker-free (PstLM <1.0 / SVM >0.4)

Material

PC, SECC

Electrical Class

Class I luminaire, requires earth

Driver Included / Incorporated

Driver Incorporated

Impact Rating

IK08

Warranty

5 Year Warranty
