All B12-W3457KA

B12

  • Checking stock...
Base 1200mm Batten White 23-40W 3000K / 4000K / 5700K
Battens
Base 1200mm Batten White 3000K / 4000K / 5700K

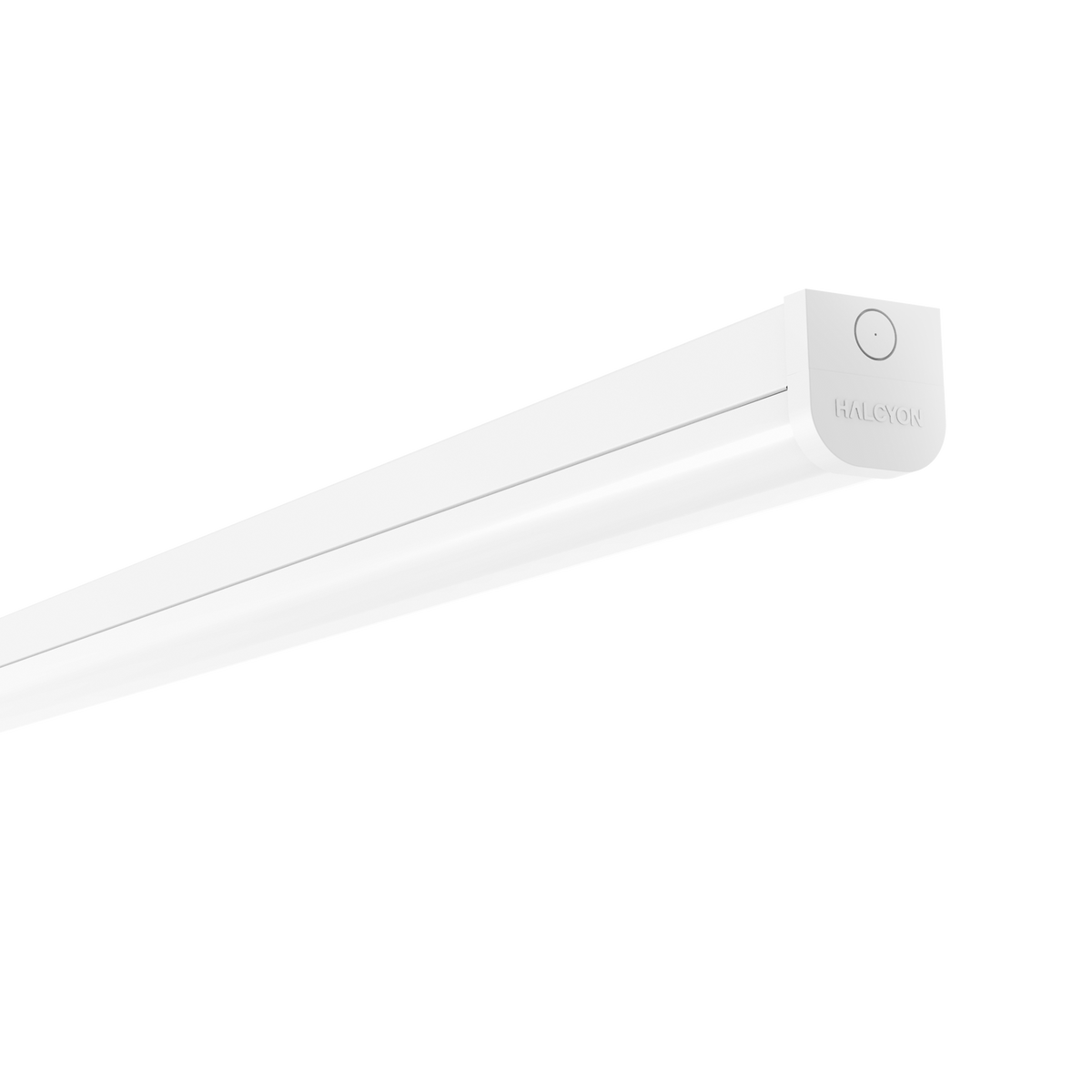

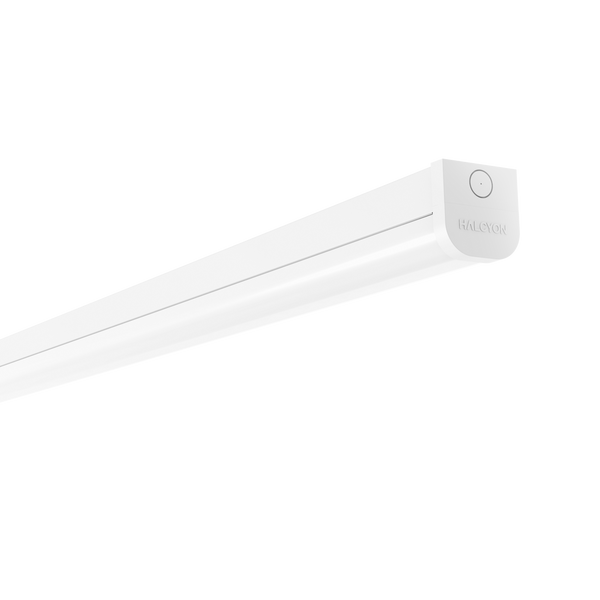

B12-W3457KA Base 1200mm Batten White 3000K / 4000K / 5700K

Lumens

Watts

2450lm / 3100lm / 3610lm / 4250lm

23W / 28W / 34W / 40W

Lumens

Watts

2450lm / 3100lm / 3610lm / 4250lm

23W / 28W / 34W / 40W

Add to

Select driver

driver sold separately. Please select below.

Specifications

Base 1200mm Batten White 3000K / 4000K / 5700K

Battens

B12-W3457KA

Finish

White

Colour Temp

3000K, 4000K or 5700K (Selectable)

Watts

23W / 28W / 34W / 40W

Lumens

2450lm / 3100lm / 3610lm / 4250lm

Beam Angle

120°

Input

220-240V 50/60Hz

Dimming / Control

Non-Dimmable

CRI

80

Lifespan

50,000hrs (L80 B10)

Ingress Protection

IP20

RAL Colour

RAL9003

Height

65mm

Width

63mm

Length

1205mm

Binning

SDCM 5

TLAs

Flicker-free (PstLM <1.0 / SVM >0.4)

Material

SPCC, PC

Electrical Class

Class I luminaire, requires earth

Driver Included / Incorporated

Driver Incorporated

Power Factor

0.9

Impact Rating

IK06

Warranty

5 Year Warranty
