R580 W3K
R580
- Checking stock...
R580 W3K Wall Washer Fixed Downlight Kit White 3000K
Lumens
Watts
700lm
10W
View Options
DCC260-DX-12W-GL
Watts
6W-12W
Watts
6W-12W
Select Downlights
R580

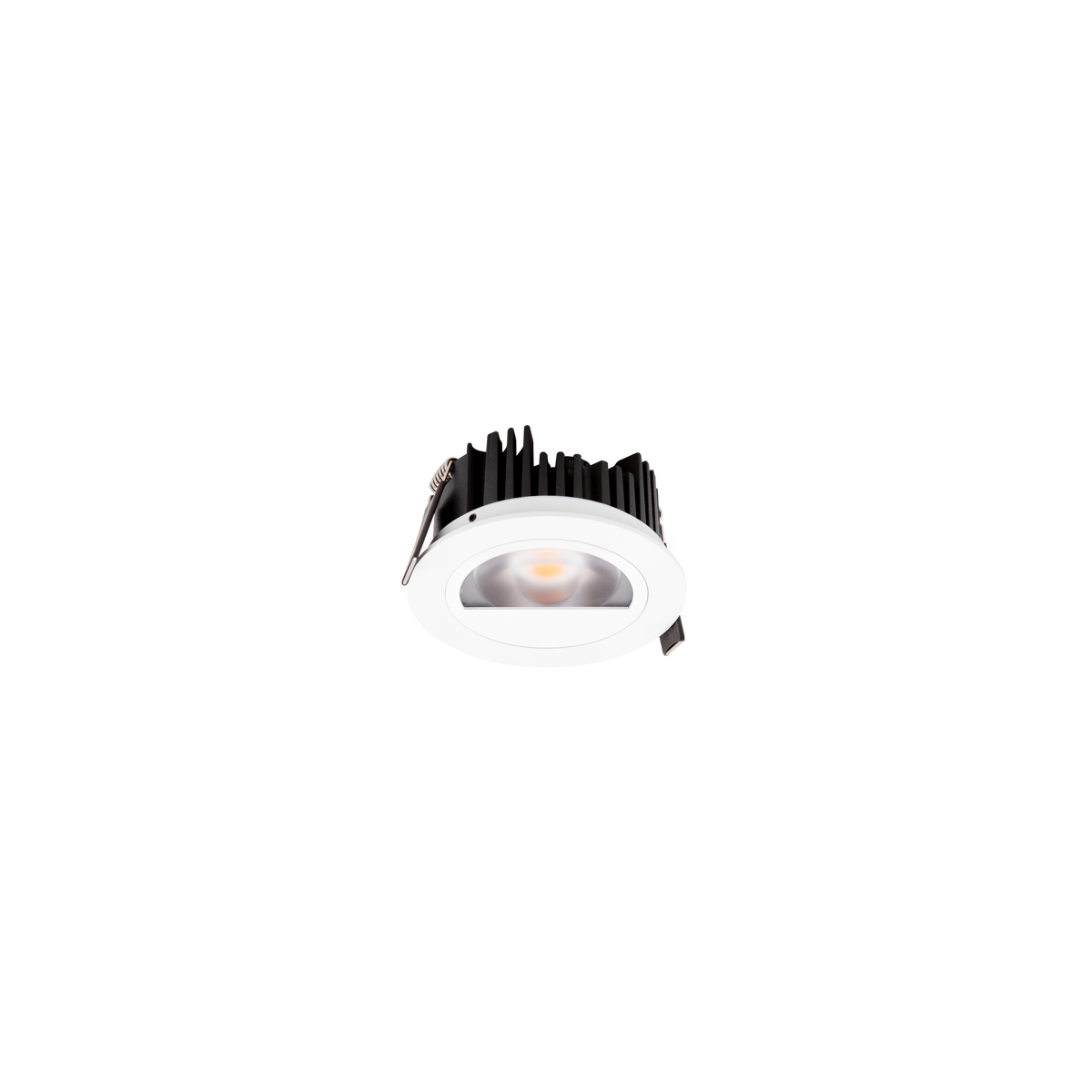

Wall Washer Fixed Downlight Kit White 3000K
Temp.
3000K Warm White
Cut out
82mm
Lumens
700lm
Watts
10W
R580

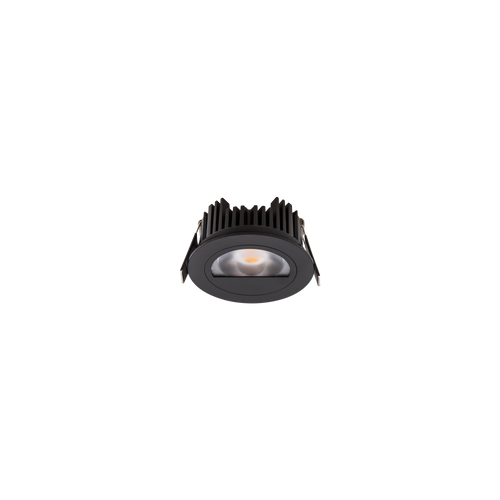

Wall Washer Fixed Downlight Kit Black 3000K
Temp.
3000K Warm White
Cut out
82mm
Lumens
700lm
Watts
10W
Specifications
Finish
White
Colour Temp
3000K Warm White
Watts
10W
Lumens
700lm
Beam Angle
50° x 35° Asymmetric
Dimming / Control
Phase-Cut Dimmable
CRI
90
Lifespan
50,000hrs (L90)
Ingress Protection
IP21
Cut Out
82mm
Diameter
90mm
Height
43mm
Binning
SDCM 3
TLAs
"Flicker-free", PstLM ≤1.0; SVM ≤0.4
Classification
IC-F / IC-4
Material
Aluminium
Electrical Class
Class II
Driver Output Current
260mA
Driver Included / Incorporated
Driver Included
Warranty
5 Year Warranty
Driver
260mA 12W Dimmable Constant Current DX Series Go Link Driver
Watts
6W-12W
Input
220-240V 50/60Hz
Dimming / Control
Dimmable
Ingress Protection
IP20
Height
28mm
Width
55mm
Length
144mm
Downloads
