DCC800A-CAS-40W-PNL
DCC800A-CAS-40W-PNL
- Custom Build - Request Availability

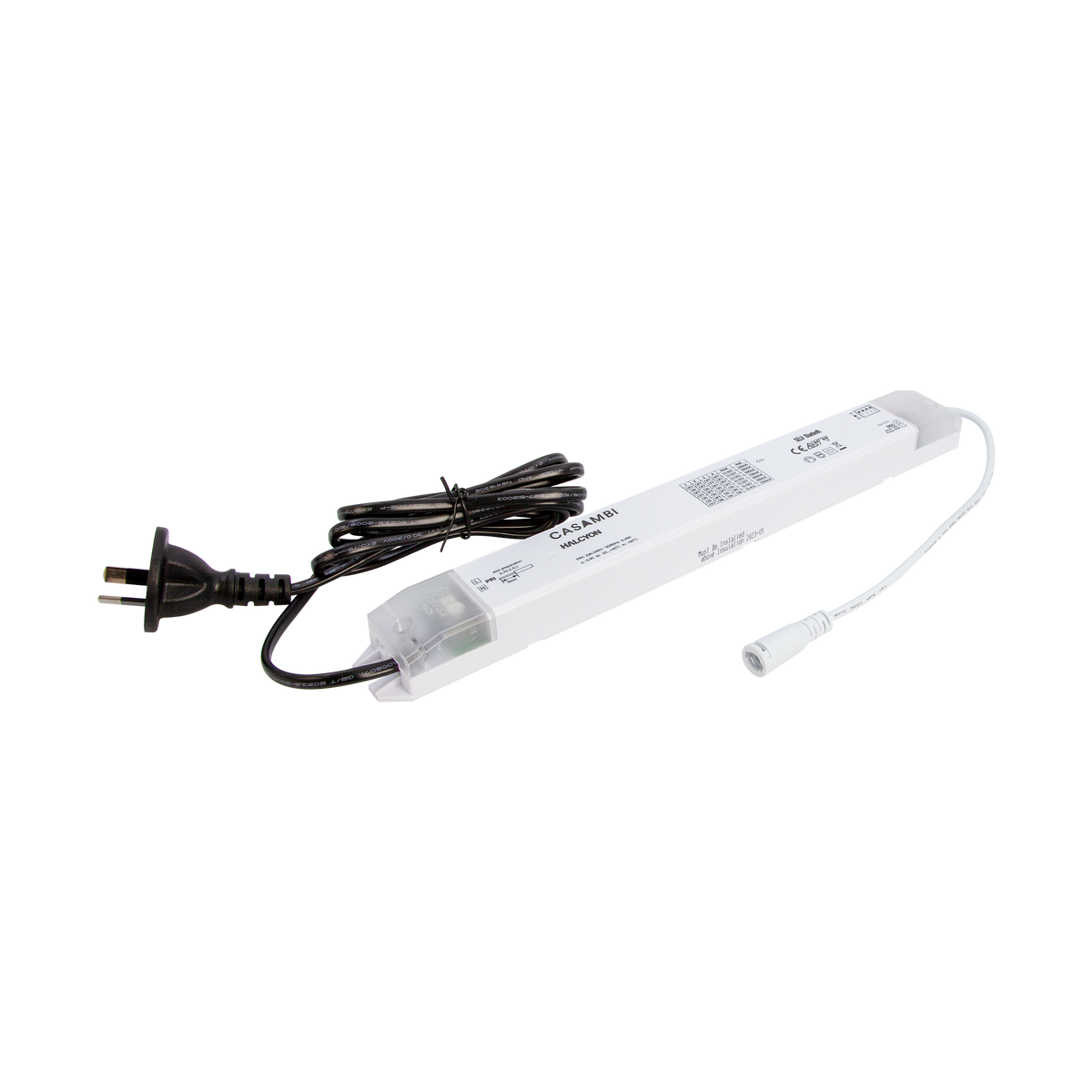

Driver Casambi Pri:240V Sec:10-50V 800mA CC 8-40W Standard c/w Quick Connect Panel Secondary Cable, 1.5m Lead, 2 Pin Plug
Casambi
DCC800A-CAS-40W-PNL 800mA 40W Constant Current Casambi Driver
Watts
8-40W
Watts
8-40W
Specifications
Watts
8-40W
Input
220-240V 50/60Hz
Dimming / Control
Casambi
Ingress Protection
IP20
Height
24mm
Width
35mm
Length
320mm
Electrical Class
Class II
Driver Output Voltage
10-50V
Driver Output Current
800mA
Installation Note
Must be installed above insulation
Warranty
5 Year Warranty
